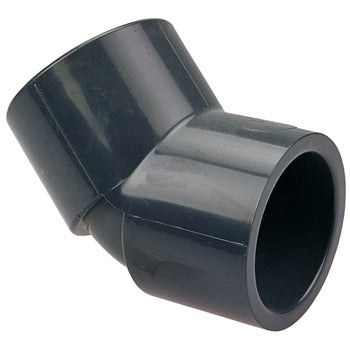

Dura Plastic PVC8045L114 Sch 80 45 Degree Socket Elbow

Product Description

The DURA PLASTIC PVC8045L114 is a Schedule 80 PVC 45-degree elbow with socket-by-socket (S x S) end connections sized at 1-1/4 inches. Built from rigid PVC to Schedule 80 wall thickness, this fitting delivers greater pressure ratings and impact resistance compared to Schedule 40 counterparts. It is used to redirect flow at a 45-degree angle within pressurized or gravity-fed piping systems. Plumbers and pipefitters install this fitting in both above-ground and below-ground applications where chemical resistance and durability under higher system pressures are required.

This elbow fits into residential and commercial plumbing, irrigation, and industrial process piping systems that call for Schedule 80 PVC throughout. The socket ends accept 1-1/4 inch nominal PVC pipe and are solvent-cement joined per standard PVC joining procedures. It is a common component in chemical handling lines, pool and spa equipment plumbing, and water distribution runs where the additional wall thickness of Schedule 80 is specified.

Key Features

• Schedule 80 wall thickness provides higher pressure capacity than Schedule 40
• 45-degree angle allows gradual directional change with lower flow restriction than a 90-degree elbow
• Socket-by-socket (S x S) ends accept solvent-cement joining for a leak-tight bond
• Rigid PVC construction resists corrosion and many common chemicals
• 1-1/4 inch nominal size fits standard PVC pipe of the same nominal diameter

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with 1-1/4 inch nominal Schedule 80 PVC piping systems using solvent-cement socket connections.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following IPC and local plumbing code requirements. Shut off and depressurize the piping system completely before cutting into any existing line. Clean and dry both the pipe end and socket interior before applying PVC primer and Schedule 80-rated solvent cement. Allow full cure time per the cement manufacturer instructions before restoring system pressure.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Pipe Size: 1-1/4 inches
• End Connection Type: Socket x Socket (S x S)
• Fitting Angle: 45 degrees

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC8045L114
