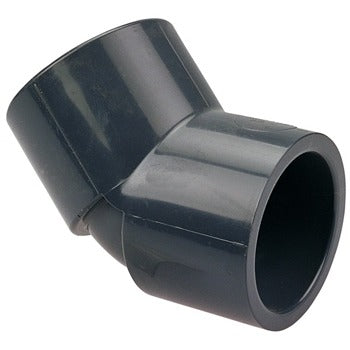

Dura Plastic PVC8045L112 Schedule 80 45 Degree Elbow

Product Description

The DURA PLASTIC PVC8045L112 is a Schedule 80 PVC socket 45-degree elbow designed for pressure piping systems in industrial, commercial, and residential applications. It accepts 1-1/2 inch pipe on both ends via solvent-weld socket connections on both the inlet and outlet. Schedule 80 construction provides a thicker wall than Schedule 40, making it suitable for higher-pressure service and environments where mechanical impact or chemical exposure is a concern. Plumbers and pipefitters install this fitting where a 45-degree change in pipe direction is required without introducing excessive flow restriction.

This elbow is used in water supply, chemical distribution, irrigation, and industrial process piping where PVC is an approved material. The solvent-weld socket design allows for a permanent, leak-resistant joint when installed with the correct primer and solvent cement per manufacturer instructions. It is well suited for both above-ground and below-ground applications where Schedule 80 PVC is specified by the engineer or code authority.

Key Features

• Schedule 80 wall thickness for higher pressure ratings compared to Schedule 40 fittings
• 45-degree socket elbow for smooth directional change in piping runs
• 1-1/2 inch socket on both ends for standard solvent-weld assembly
• PVC construction resists corrosion, scale buildup, and many common chemicals
• Permanent solvent-weld joint eliminates threaded connection failure points

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch Schedule 80 PVC pressure piping systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off and depressurize the piping system completely before cutting into any existing line. Use a PVC-rated primer and solvent cement appropriate for Schedule 80 fittings, following ASTM D2564 guidelines and all applicable IPC or local plumbing code requirements. Allow full cure time before restoring system pressure.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Connection Type: Socket (S x S) Solvent Weld
• Angle: 45 degrees
• Pipe Size: 1-1/2 inches

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC8045L112
