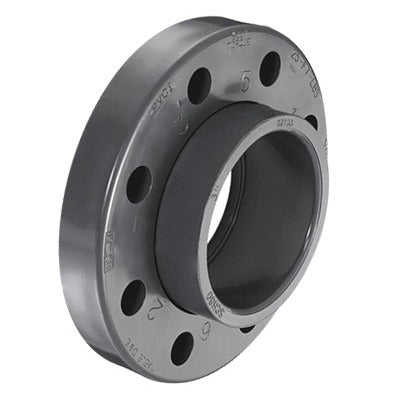

Dura Plastic 854P-060 Van Stone Flange Pvc Ring 6 Inch

Product Description

The DURA PLASTIC 854P-060 is a Van Stone style flange with a PVC ring, designed for use in 6-inch nominal pipe systems. This fitting provides a reliable, rotatable ring design that allows bolt holes to be aligned without rotating the pipe or fitting body. Rated at 150 lb, it connects via socket-end fitting and is manufactured domestically. Licensed plumbing professionals and pipefitters install this type of flange in both pressure and non-pressure PVC piping systems where flanged connections are required at pumps, valves, and equipment interfaces.

This flange is suited for residential and commercial plumbing, irrigation, water treatment, and industrial process piping applications where PVC flanged connections are needed. The 6-inch nominal size makes it a practical choice for main lines, pump connections, and equipment tie-ins. The socket connection style allows for solvent-weld installation to schedule-rated PVC pipe. Domestic manufacture supports projects where country-of-origin compliance is a specification requirement.

Key Features

• Van Stone style design with rotating PVC ring for easy bolt-hole alignment without rotating pipe
• 6-inch nominal pipe size for main line and large-diameter applications
• Socket connection for solvent-weld installation to PVC pipe
• 150 lb pressure rating suitable for standard water service and irrigation systems
• PVC construction offers corrosion resistance in water and mild chemical service
• Domestically manufactured for projects with origin requirements

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 6-inch nominal PVC piping systems using flanged connections at 150 lb rated service.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off and depressurize the system completely before cutting into existing piping. Use appropriate PVC primer and solvent cement rated for the pipe schedule and service conditions when making the socket-weld connection. Allow full cure time for the solvent weld before pressurizing the system and torquing flange bolts evenly in a cross pattern.

Technical Specifications

• Pipe Size (Nominal): 6 inches
• Connection Type: Socket
• Pressure Rating: 150 lb
• Material: PVC
• Style: Van Stone with PVC Ring
• Country of Origin: Domestic

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: 854P-060
