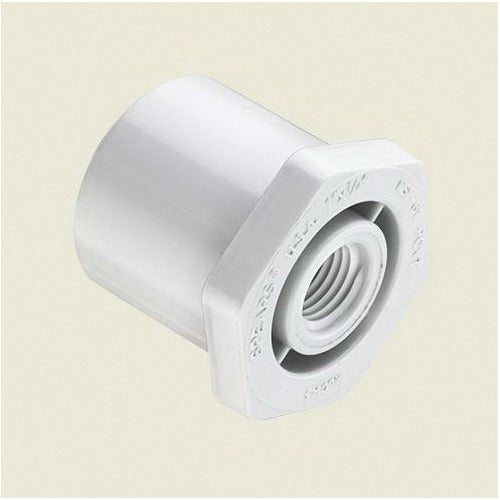

Dura Plastic 438-420 Flush Reducing Bushing 4x2 in Sch 40 Pvc

Product Description

The DURA PLASTIC 438-420 is a flush reducing bushing designed to transition pipe sizes within a plumbing or fluid-handling system. It connects a 4-inch spigot inlet to a 2-inch female NPT (FNPT) outlet, allowing a pipe or fitting to step down in diameter without requiring additional adapters. Constructed from Schedule 40 PVC, this bushing is suited for pressure-rated cold and hot water systems, chemical drainage lines, and industrial piping applications. Licensed plumbers and pipefitters install this fitting wherever a direct size reduction is needed in a threaded or solvent-welded PVC system.

This bushing is used in residential and commercial plumbing systems, irrigation lines, pool and spa plumbing, and industrial fluid distribution where a 4-inch to 2-inch reduction is required. The spigot end inserts directly into a 4-inch socket fitting and is solvent-cemented in place, while the FNPT end accepts a 2-inch male-threaded pipe or fitting. It is manufactured domestically to Schedule 40 dimensional standards.

Key Features

• 4-inch spigot inlet transitions to 2-inch FNPT outlet in a single flush-style fitting
• Schedule 40 PVC construction meets standard pressure and dimensional ratings for PVC piping systems
• Flush bushing profile keeps the reduction compact and close to the host fitting
• FNPT outlet threads accept standard male NPT pipe and fittings
• Domestic manufacture to SCH 40 dimensional standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 40 PVC piping systems requiring a 4-inch spigot to 2-inch female NPT reduction.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable IPC or local plumbing codes. Shut off and depressurize the system completely before cutting into any existing line. The spigot end requires proper PVC primer and solvent cement applied per the cement manufacturer instructions before insertion into the mating socket. Do not over-torque threaded connections on the FNPT end, as PVC threads are susceptible to cracking under excess load.

Technical Specifications

• Inlet Size: 4 inches
• Outlet Size: 2 inches
• Connection Type: Spigot x FNPT
• Schedule: SCH 40 / STD
• Material: PVC
• Country of Origin: Domestic

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: 438-420
