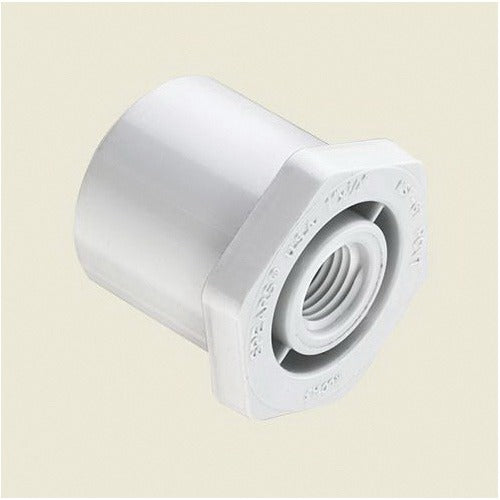

Dura Plastic 438-248 Pvc Flush Bushing Sch 40 2x3/4 in

Product Description

The DURA PLASTIC 438-248 is a Schedule 40 PVC flush bushing used to reduce a 2-inch female connection down to a 3/4-inch threaded port. The spigot end slips into a standard socket fitting, while the female NPT (FNPT) end accepts a male-threaded pipe or fitting. Constructed from PVC, this bushing is well-suited for low-pressure water distribution, irrigation, pool and spa plumbing, and general industrial piping systems. Plumbers and pipefitters install this fitting wherever a concentric, flush-style reduction is needed within a Schedule 40 PVC system.

This bushing is appropriate for residential and light commercial plumbing applications where a compact, inline pipe reduction is required. The flush design keeps the transition tight against the receiving fitting, minimizing overall assembly length. It is commonly installed in irrigation manifolds, pool equipment pad plumbing, and domestic cold-water supply lines where PVC is the specified pipe material.

Key Features

• Flush bushing design provides a compact, low-profile reduction within the fitting assembly
• Schedule 40 PVC construction offers resistance to corrosion, scale, and most common chemicals
• 2-inch spigot inlet transitions to a 3/4-inch FNPT outlet in a single fitting
• FNPT female thread accepts standard male NPT pipe or nipple for a secure threaded connection
• Domestic manufacture designation indicates U.S.-sourced production

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with Schedule 40 PVC piping systems using standard NPT threading and solvent-weld socket connections.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working within systems that meet local plumbing code requirements referencing the IPC or equivalent. Solvent-cement the spigot end into the receiving socket using a PVC primer and cement rated for Schedule 40 fittings, following the cement manufacturer's cure time before pressurizing the system. Thread the FNPT port connection with appropriate thread sealant or PTFE tape applied to the male threads. Always depressurize and drain the line before cutting into an existing system.

Technical Specifications

• Nominal Size: 2 x 3/4 inches
• End Style: Spigot x FNPT
• Schedule: SCH 40
• Material: PVC
• Origin: Domestic

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: 438-248
