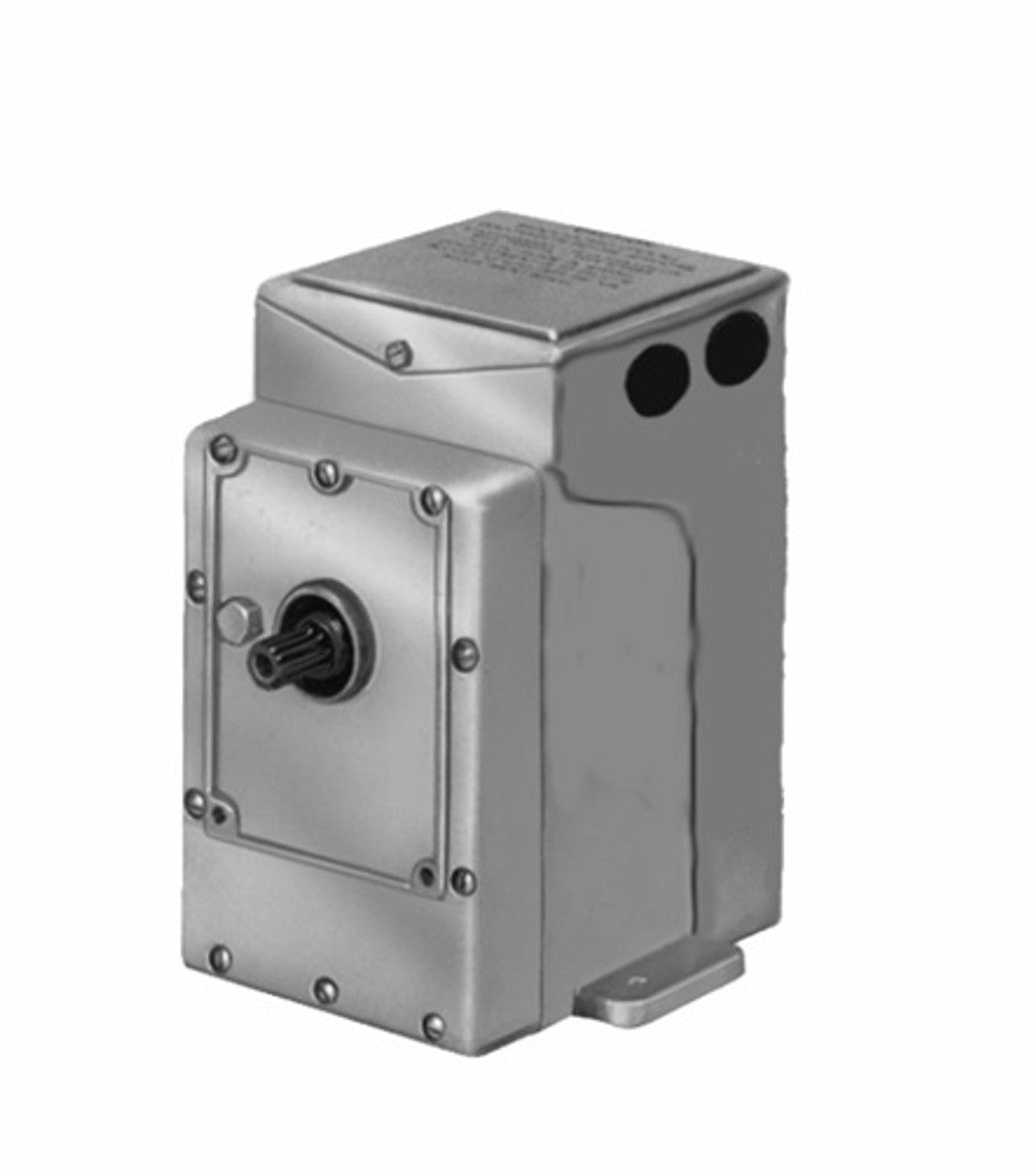

Dungs 269228 Spring Return Actuator EMA-405-1

Product Description

The Dungs 269228 Spring Return Actuator is an electrical actuator that is ideal for operating dampers, butterfly valves, and similar industrial devices. It has a strong output of sixteen inch-pounds and operates at 120 volts alternating current with a frequency of sixty hertz. This actuator is designed for two-position operation with a spring return feature and comes complete with a crank arm.

• Output of sixteen inch-pounds
• Operates at 120Vac, 60Hz
• Includes crank arm for installation

Product Highlights

This Dungs actuator ensures reliable control of dampers and valves in various industrial applications, utilizing a spring return mechanism for accurate timing.

Product Information

Standard Information

• Brand: Dungs
• Condition: New

Technical Specifications

• MPN: 269228
• Output: 16 in lb
• Electrical Ratings: 120 Vac, 60 Hz
• Enclosure Rating: NEMA Type 4
• Temperature Rating: -40°F to +136°F
• Operating Mode: Two Position, Spring return
• Size: 5.375 inches x 6.5625 inches x 5.75 inches
• Included: Crank arm included
• Running and Holding: 45 VA
• Current: 0.90 A
• Full Load Timing: 30 seconds
• No Load Timing: 10 seconds
• Shaft Diameter: 1/2 inches (13 mm)
