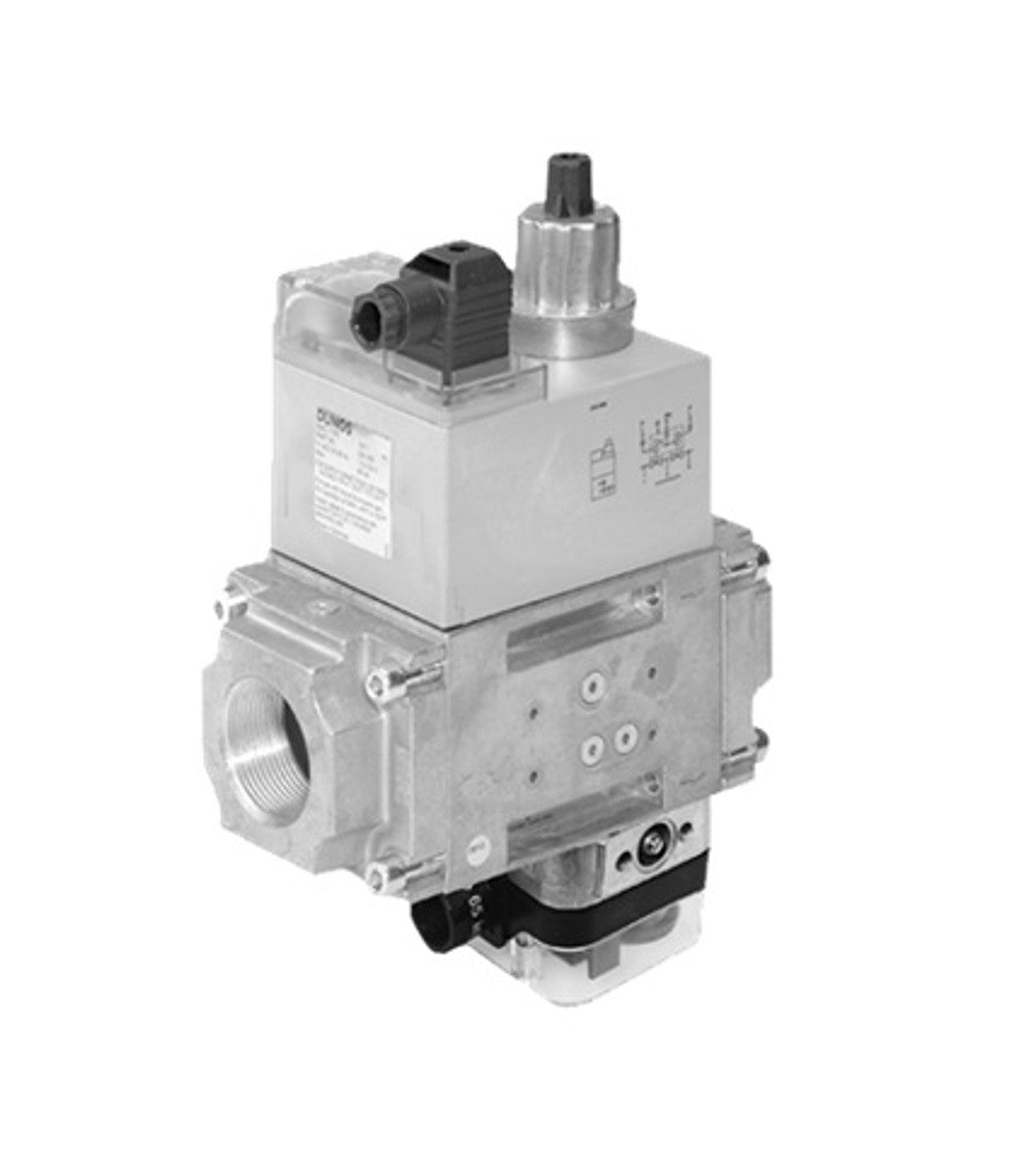

DUNGS 267025 Dual Modular Shutoff Valve DMV-DLE 703/622 with Proof of Closure

Product Description

The Dungs Dual Modular Valve DMV/622 is designed to integrate two automatic shutoff valves within a single housing unit. This product features a proof of closure mechanism that ensures valve seal integrity through overtravel and interlock capabilities. Both valves can be connected individually or collectively for enhanced operational flexibility.

• Fast opening and closing functionality for effective control.
• Available options for both NPT and RP connections.
• Flange sizes available: one-inch, one and a quarter inches, one and a half inches, and two inches.

Product Highlights

Suitable for various applications, the DMV-DLE series offers seamless integration for efficient gas flow management.

Product Information

Standard Information

• Voltage: 120VAC
• Frequency: 50-60Hz
• Power: 90VA
• Type: NEMA Type 12

Technical Specifications

• Replacement Coil: PN#232403
• Replacement PWB: PN#238806
• Hydraulic Brake Replacement: #240458
• Certification: UL Recognized, CSA Certified, FM Approved
