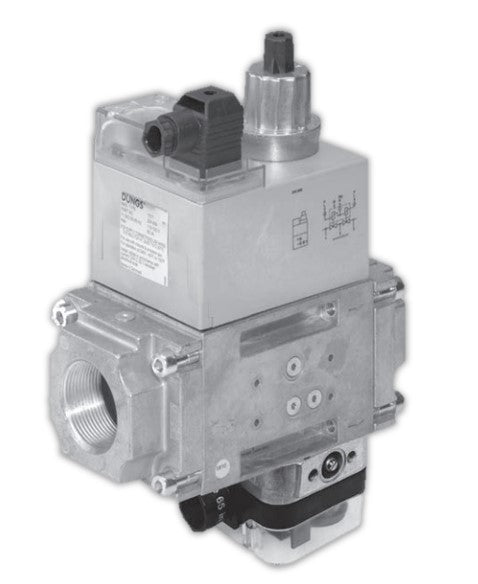

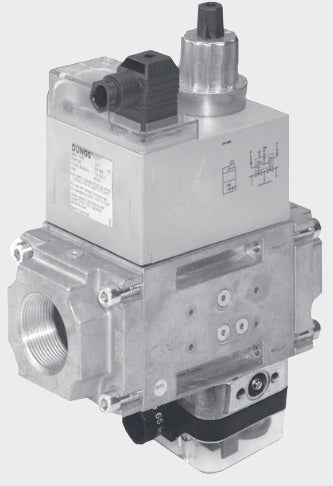

Dungs 267016 Dmv-D 702/622 Dual Modular Safety Shutoff Valves 120Vac

Product Description

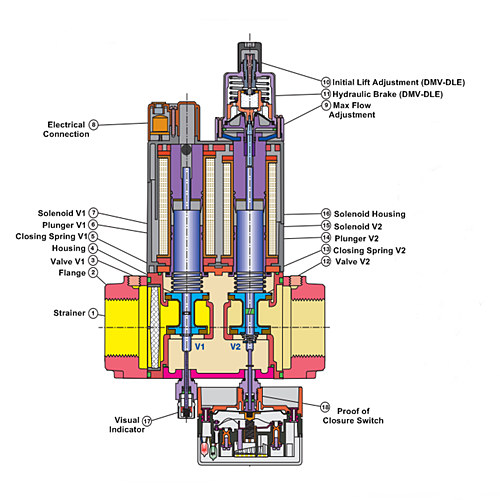

The DUNGS 267016 Dual Modular Valve DMV/622 combines two automatic shutoff valves in one compact housing. Valve 2 incorporates proof of closure valve seal overtravel and interlock. Both valves can be wired independently or in parallel. Valve 1 is fast opening and fast closing, while valve 2 is fast opening. Maximum flow adjustment on valve 2 provides variable main flow.

• Dual Modular Valve combines two automatic shutoff valves in one compact housing.
• Valve 2 incorporates proof of closure valve seal overtravel and interlock.
• Valves can be wired independently or in parallel.

Product Highlights

The DUNGS DMV-D 702/622 is suitable for industrial and commercial heating applications requiring two safety shutoff valves and proof of closure.

Product Information

Standard Information

• Brand: DUNGS
• Manufacturer Part Number: 267016
• Country of Origin: United States

Technical Specifications

• Max. operating pressure: 7 PSI (500 mbar) UL, FM
• Max. Close off Pressure: 10 PSI (700 mbar) UL, FM
• Electrical ratings (+10% / -15%): 110 - 120 Vac/50 - 60 Hz
• Enclosure: Nema Type 12
• Electrical Connection: DIN-connector with 1/2” NPT conduit adapter
• Operating time: 100 % duty cycle
• Ambient temperature rating: -40 °F to +150 °F (-40 °C to +65 °C)
• Voltage: 120Vac, 50/60Hz, 65 VA
• Brand: Dungs
• Mfg. P/N: 267016
• Approvals: UR, CSA and FM
• Connections: 1”, 1 1/4”, 1 1/2”, 2” NPT or Rp Threaded Flanges, Sold Separately, Two Required
• Capacity: Refer to flow curves in technical datasheet
• Voltage/Power: 120 Vac (+10%/-15%) 50-60 Hz, 65 VA
• Pressure: 7 PSI (500 mbar) UL, FM and 5 PSI (360 mbar) for CSA
• Temperature rating: -40 Deg F to +150 Deg F (-40 Deg C to +65 Deg C)
• Manufacturer: Dungs
• Part Number: 267016
• Product Name: Dungs 267016 DMV-D 702/622 Dual Modular Valve POC
• Body Material: Aluminum Steel
• Process Connection Size: Various Connection Sizes
• Process Temp Limits: -40 to 150 F
• Valve Operation: Normally Closed (N/C)
• Dungs Model Number: DMV-D 70X/622 Series
• Solenoid Type: Double
• Part #: 267016
• Maximum Operating Pressure: 7 PSI (500 mbar) UL, FM ; 5 PSI (360 mbar) CSA
• Maximum Body Pressure: 15 PSI (1000 mbar)
• Power Rating: DMV 702: 65 VA
• Closing Time: < 1 s
• Opening Time: DMV-D.../622 = V1 & V2 < 1 s
• Installation Position: Safety shutoff valve from vertically upright to horizontal
• Gas Filter (optional): Replaceable integral gas filter(50 micron)in inlet of DMVorPre-Mount FilterBlock for DMV 702 and 703. (Cannot be used with FRI directly mounted to the DMV)
• Gas strainer (standard): Installed in the housing upstream V1 (23 mesh)
