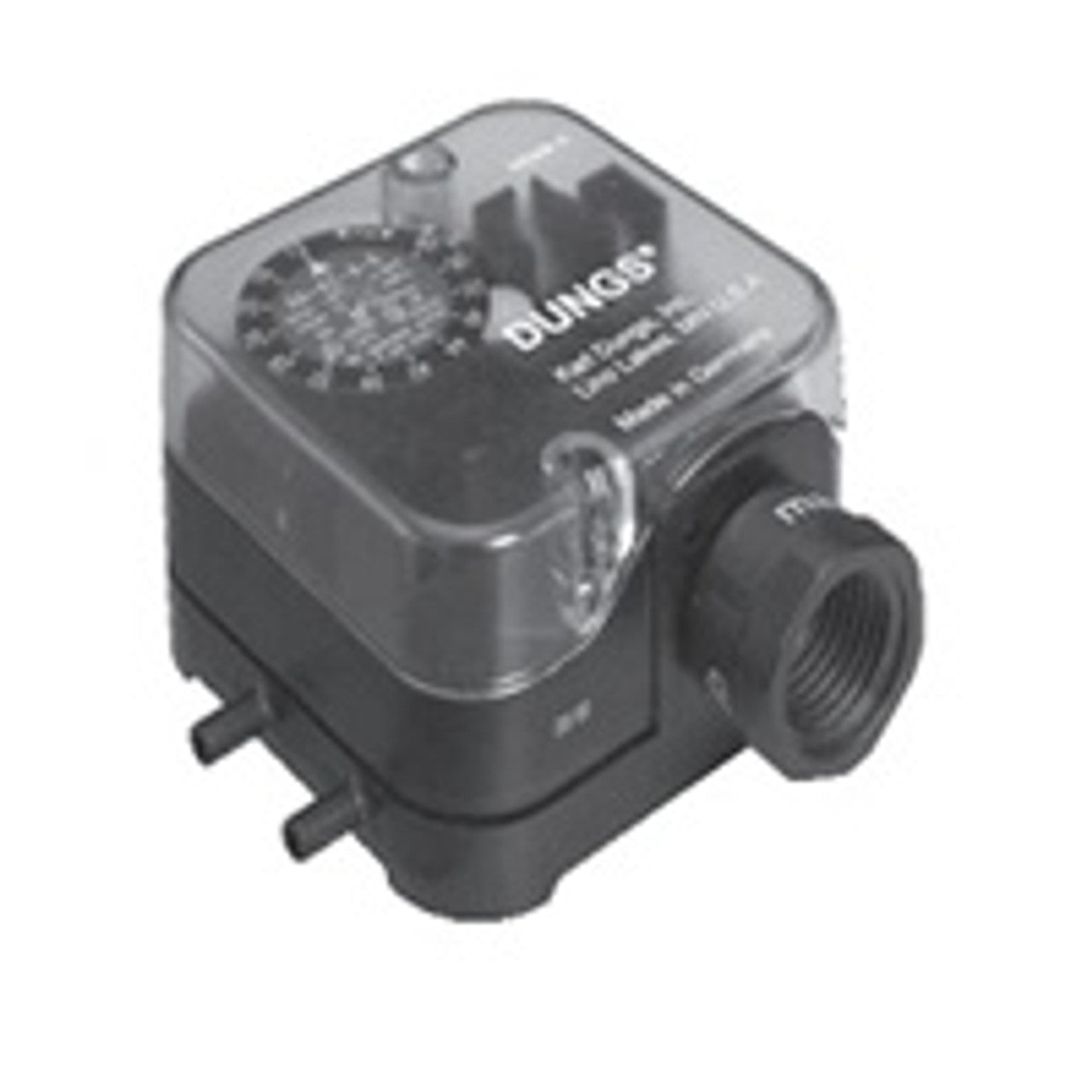

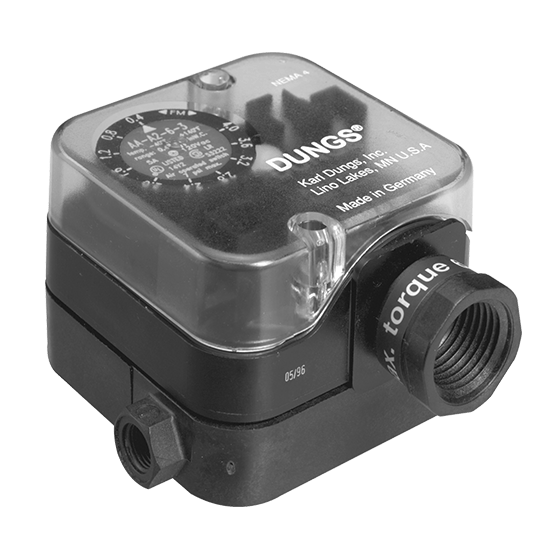

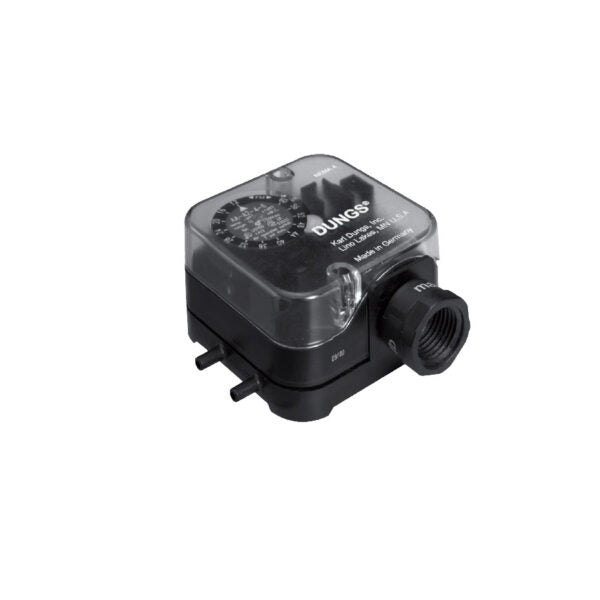

DUNGS 266932 DUNGS Air Pressure Switch AA-A2-6-2

Product Description

The DUNGS AA-A2-6-2 is a field-adjustable air pressure switch with MPN 266932, designed for automatic burner control systems. This switch operates by making or breaking a circuit when the medium pressure reaches a preset level. It works effectively for air and non-aggressive gases.

• Field adjustable for precise pressure settings
• NPT threaded connections for ease of installation
• Suitable for various applications involving air pressure

Product Highlights

This air pressure switch is compact and reliable, making it a choice for HVAC technicians and professionals who need consistent performance.

Product Information

Standard Information

• Approvals: UL, CSA and FM
• Connection Type: Threaded Connection

Technical Specifications

• Enclosure Rating: NEMA Type 4
• Contact Ratings: SPDT Switch 5A resistive/3A inductive @ 120 Vac
• Electrical Rating: DC min. 20 mA @ 24 Vdc/DC max. 1 A @ 48 Vdc
• Positive Connection: 1/4 NPT positive connection
• Negative Connection: 1/8 NPT negative connection
• Factory Setting Range: 0.16-1.2 W.C.
• Max Operating Pressure: 7 PSI (500 mbar)
• Operating Temperature: -40 Deg F to +140 Deg F (-40 Deg C to +60 Deg C)
