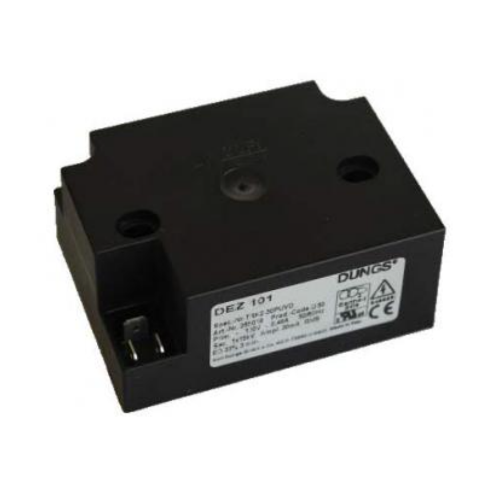

Dungs 255018 Dez 101 Ignition Transformer 120V

Product Description

The DUNGS 255018 DEZ 101 is an electronic high-performance ignition transformer with high-frequency oscillation technology. Designed for oil and gas burners, ignition takes place with one or two ignition electrodes. It has a primary voltage of 120VAC and a secondary voltage (+/- 10%) of 1x15kV, with an IP54 enclosure.

• Electronic high-performance ignition transformer
• Suitable for oil and gas burners
• Features high-frequency oscillation technology

Product Highlights

The Dungs 255018 ignition transformer is smaller and lighter than conventional inductive ignition transformers. It is UL Recognized and CE certified.

Product Information

Standard Information

• Brand: DUNGS
• Manufacturer Part Number: 255018
• Country of Origin: United States

Technical Specifications

• MPN: 255018
• Brand: DUNGS
• Condition: New
• High-Voltage Outputs: 1
• Mains Voltage: 120VAC
• Frequency: 50/60Hz
• Current Consumption: 0.5A
• Power Consumption: 55VA
• Secondary Voltage +/- 10%: 1x15kV
• Secondary Frequency: 13kHz
• Short Circuit Current: 30mA
• Duty Cycle 3 min.: 33%
• Ambient Temperature: -20-60C
