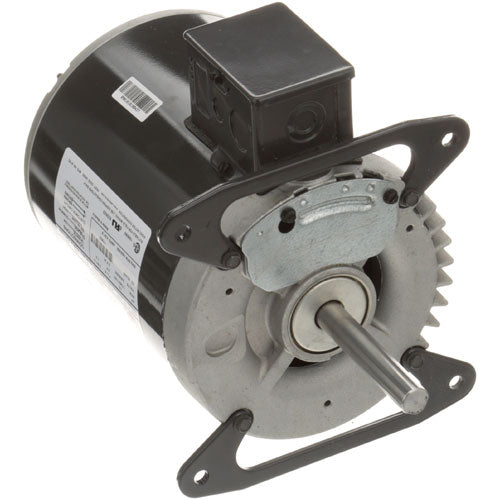

MOTOR 200-240V, 1/2-1/4HP, 1P for Duke DUK155828

Product Description

This item for Duke DUK155828 is a motor designed for use in various applications. It operates at 200-240 volts and has a power range of one-half to one-quarter horsepower. The motor features two speed settings and can run at either 1725 or 1140 RPM.

• Single phase, 50/60 Hz operation
• Reversible rotation with a shaft size of three-and-a-half by five-eighths inches
• Requires ground wiring for safety

Product Highlights

This motor is suitable for commercial and industrial use, particularly in kitchen appliances such as ovens. It is compatible with several blower wheels for enhanced performance.

Product Information

Standard Information

• Product Notes: Operates at 200-240V, 1/2-1/4 HP, 50/60 Hz, 1 Ph
• Rotation: Clockwise and reversible

Technical Specifications

• Speed Options: 1725/1140 RPM
• Amperage: 3.5-4.0 A / 1.5-1.8 A
• Shaft Dimensions: 3.5 x 5/8 inches with 2 flats
• Usage Notes: If using an Emerson motor on a Garland oven, cap gray wires individually with wire nuts.
• Blower Wheel Compatibility: Uses blower wheels 9-7/8 diameter or 10 diameter
