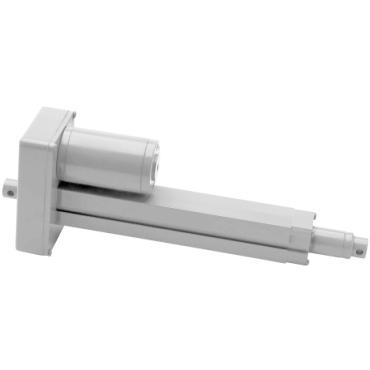

Duff Norton TMD02-1906-8 Electromechanical Linear Actuator 12 VDC 8

Product Description

Duff Norton TMD02-1906-8 is a reliable electromechanical linear actuator designed to manage heavy loads efficiently. With a capacity of 250 pounds and an eight-inch travel, this actuator operates on 12 VDC power to provide effective performance. Its compact design allows for easy integration into various applications, including automation and material handling.

• 250 lb capacity
• Eight-inch travel
• Operates on 12 VDC

Product Highlights

This actuator is built for durability and flexibility in demanding environments. It features adjustable reed-type limit switches, making it versatile for various installation setups. The actuator's aluminum housing ensures longevity while maintaining a lightweight profile.

Product Information

Standard Information

• Product Link: View Product
• Brand: Duff Norton
• Part #: 101823265

Technical Specifications

• Travel: 8 inches
• Closed Height: 13 inches
• Limit Switches: Yes
• End Configuration: Double Clevis
• Motor Voltage: 12 VDC
• Brake: Dynamic Braking
• Temperature Range [Min]: 25 °F
• Width: 4.90 inches
• Depth: 3.200 inches
• Temperature Range [Max]: 120 °F
• Capacity @ Zero Travel: 250 lb
• Drive: Double Lead Screw
• Lifting Speed: 24.0 inches/min
• Weight: 6.0 lb
