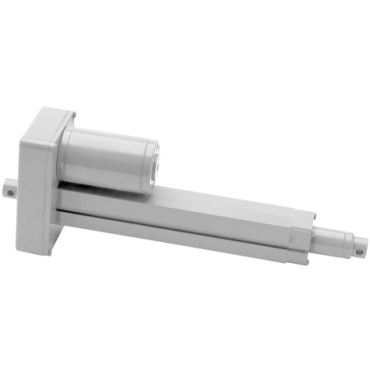

Duff Norton TMD02-1906-12 Electromechanical Linear Actuator 12 VDC 12 in Travel

Product Description

The Duff Norton TMD02-1906-12 is an electromechanical linear actuator designed for a variety of applications. This actuator features a lifting capacity of 250 pounds and a travel distance of twelve inches. Powered by 12 VDC, it efficiently operates using a compact design.

• 250-pound capacity for reliable lifting
• Travel distance of twelve inches
• 12 VDC power input

Product Highlights

The actuator is ideal for settings that need silent operation. It includes adjustable limit switches and offers configurations for both AC and DC power inputs.

Product Information

Standard Information

• Brand: Duff Norton
• MPN: TMD02-1906-12

Technical Specifications

• Temperature Range [Min]: 25 °F
• Temperature Range [Max]: 120 °F
• Motor Voltage: 12 VDC
• Capacity @ Zero Travel: 250 lb
• Brake: Dynamic Braking
• Depth: 3.200 inches
• Drive: Double Lead Screw
• End Configuration: Double Clevis
• Width: 4.90 inches
• Travel: 12 inches
• Closed Height: 17 inches
• Lifting Speed: 24.0 inches/min
• Weight: 7.0 lb
