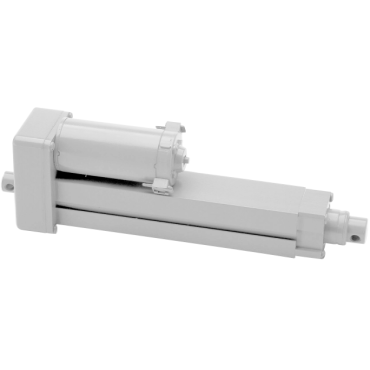

Duff Norton TMD01-1906-8 Electromechanical Linear Actuator 12 VDC Each

Product Description

The Duff Norton TMD01-1906-8 is an electromechanical linear actuator designed for various applications. With a capacity of one hundred pounds and travel of eight inches, this actuator operates on twelve volts direct current (VDC). It features a double clevis design, making it suitable for multiple setups in automated systems.

• 100 lb capacity
• 8 in travel
• Dynamic braking system

Product Highlights

This linear actuator is ideal for tasks requiring reliable linear motion solutions in industrial settings. Its compact size ensures ease of installation while maintaining functionality.

Product Information

Standard Information

• Brand: Duff Norton
• MPN: TMD01-1906-8

Technical Specifications

• Motor Voltage: 12 VDC
• Closed Height: 12 3/4 in
• Lifting Speed: 42.0 in/min
• Width: 3.40 in
• Capacity at Zero Travel: 100 lb
• Temperature Range Min: 25 °F
• Drive: Double Lead Screw
• Limit Switches: Yes
• Brake: Dynamic Braking
• Depth: 2.150 in
• End Configuration: Double Clevis
• Temperature Range Max: 120 °F
• Travel: 8 in
• Weight: 5.0 LB
