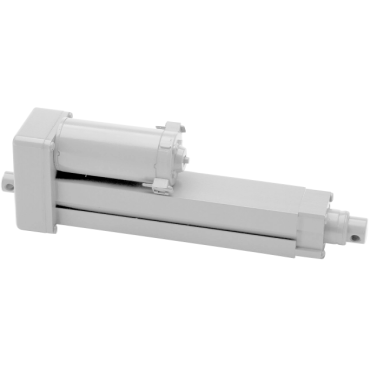

Duff Norton TMD01-1906-4 Electromechanical Linear Actuator 12 VDC 4 Inch

Product Description

The Duff Norton TMD01-1906-4 is an electromechanical linear actuator designed for applications requiring precise motion control. It operates at twelve volts DC and has a travel distance of four inches. This actuator supports a load capacity of one hundred pounds, making it suitable for various industrial tasks.

• 100 lb capacity
• 4 in travel
• 12 VDC motor voltage

Product Highlights

This actuator features a double clevis design for easy attachment and alignment. The compact size makes it a versatile choice for limited space installations.

Product Information

Standard Information

• Brand: Duff Norton
• Part Number: 101768578

Technical Specifications

• Travel: 4 in
• Width: 3.40 in
• Lifting Speed: 42.0 in/min
• Drive: Double Lead Screw
• Motor Voltage: 12 VDC
• Temperature Range [Min]: 25 °F
• Brake: Dynamic Braking
• Closed Height: 8 3/4 in
• Capacity @ Zero Travel: 100 lb
• End Configuration: Double Clevis
• Temperature Range [Max]: 120 °F
• Limit Switches: Yes
• Depth: 2.150 in
• Weight: 4.0 lb
