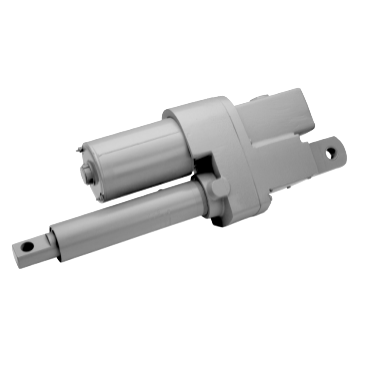

Duff Norton SPA6415-18 Electromechanical Linear Actuator 115 VAC 18 in

Product Description

The Duff Norton SPA6415-18 is an electromechanical linear actuator designed for efficient linear movement. This actuator can support a capacity of up to 1500 pounds and features an eighteen inch travel distance.

• Double clevis end configuration
• Bi-directional spring brake
• Designed for both AC and DC power supply

Product Highlights

The electromechanical actuator has dual adjustable limit switches and is known for its reliability and performance in various applications.

Product Information

Standard Information

• Brand: Duff Norton
• MPN: SPA6415-18

Technical Specifications

• Drive: Double Lead Screw
• Lifting Speed: 49.8 in/min
• Closed Height: 32.1 in
• Width: 7.79 in
• Depth: 4.600 in
• Brake: Bi-Directional Spring Type
• Motor Voltage: 115 VAC
• Weight: 37.0 lb
• Temperature Range Max: 120 °F
• Temperature Range Min: 25 °F
• Restraining Torque: 190 lb/in
• Travel: 18 in
• Limit Switches: Yes
• Temp Description: Dual Adjustable Limit Switches
• Capacity @ Zero Travel: 1500 lb
