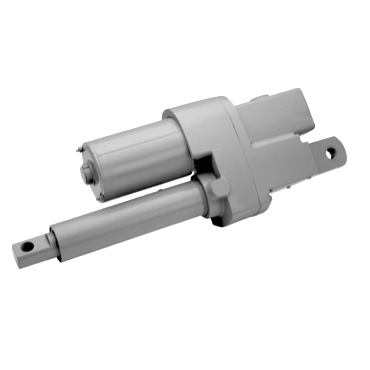

Duff Norton SPA6415-12 Electromechanical Linear Actuator 1500 lbs Capacity

Product Description

The Duff Norton SPA6415-12 is an electromechanical linear actuator designed to support a maximum load capacity of 1500 lbs. This actuator features a travel distance of 12 inches and includes dual adjustable limit switches to enhance its flexibility and control.

• Capacity of 1500 lbs
• Travel distance of 12 inches
• Includes dual adjustable limit switches

Product Highlights

This actuator is suitable for various applications requiring precise motion control. It operates on 115 VAC power and utilizes a double lead screw for efficient performance.

Product Information

Standard Information

• Brand: Duff Norton
• Part #: 100816784

Technical Specifications

• Brake: Bi-Directional Spring Type
• Depth: 4.600 inches
• Drive: Double Lead Screw
• Width: 7.79 inches
• Travel: 12 inches
• Weight: 35.0 lbs
• Closed Height: 26.1 inches
• Lifting Speed: 49.8 inches/min
• Motor Voltage: 115 VAC
• Limit Switches: Yes
• End Configuration: Double Clevis
• Restraining Torque: 190 lb/in
• Temperature Range [Min]: 25 °F
• Temperature Range [Max]: 120 °F
• Capacity @ Zero Travel: 1500 lbs
