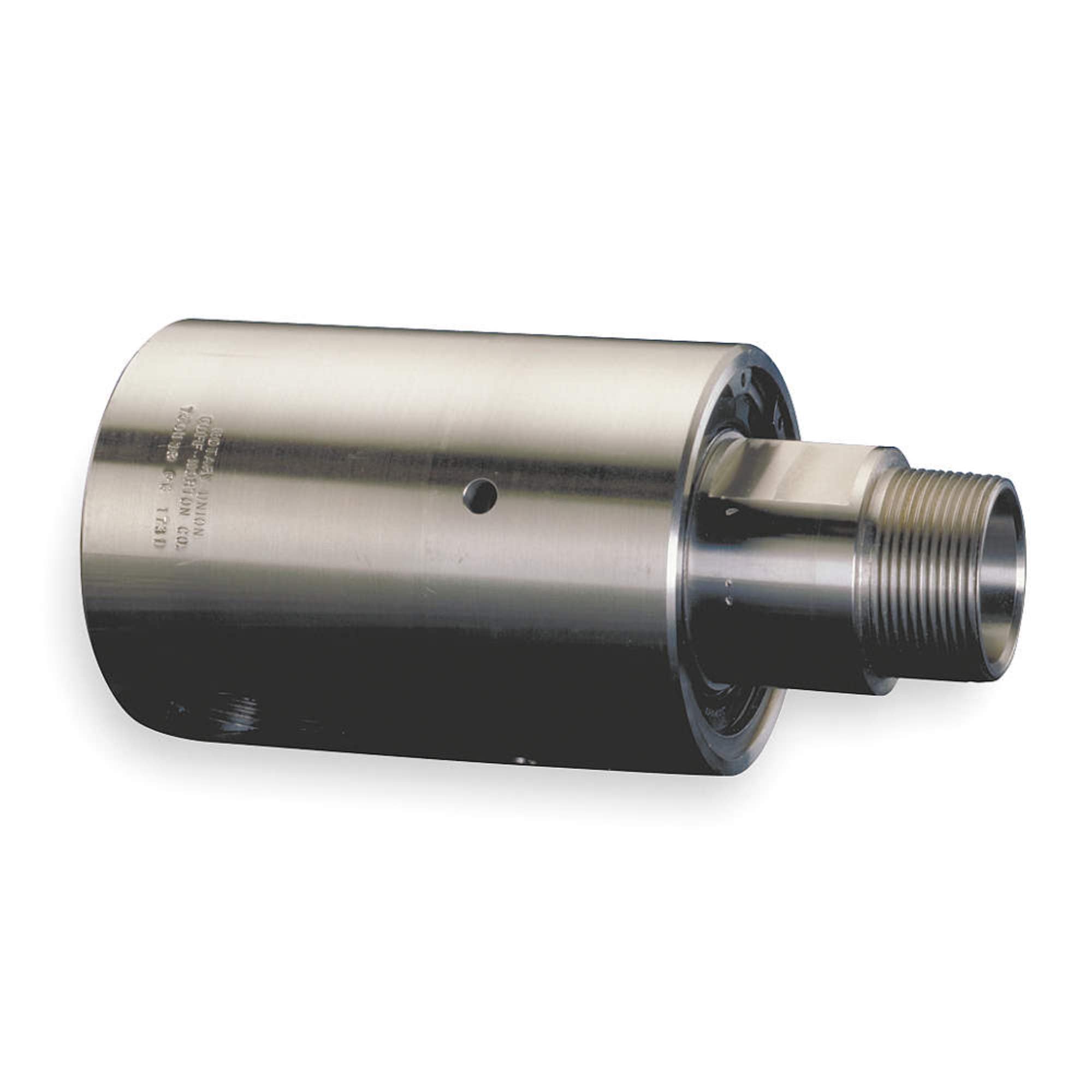

Duff-Norton 750110C Rotary Union, 3/8 in NPT, Stainless Steel

Product Description

The DUFF-NORTON 750110C rotary union features a 3/8" NPT connection and stainless steel construction. Designed for right-hand rotation and single or dual flow, this union is suitable for various applications. It can handle a max speed of 1000 RPM for NPT and a max pressure of 750 PSI for water.

• Stainless steel construction
• Right-hand rotation
• Suitable for single or dual flow

Product Highlights

The DUFF-NORTON rotary union is ideal for use with water, steam, and hot oil.

Product Information

Standard Information

• Brand: DUFF-NORTON
• Manufacturer Part Number: 750110C
• Country of Origin: United States

Technical Specifications

• Connection: NPT
• Material of Construction: Stainless Steel
• Rotation: Right Hand
• Flow: Single or Dual
• Max Speed: 1000 rpm (NPT)
• Body Dia.: 1-9/16"
• Size: 3/8 in
• Max. Pressure: 750 PSI For Water, 120 PSI For Steam, 100 PSI For Hot Oil, 300 PSI For Air
• Max. Temp.: 300 Deg F For Water, 350 Deg F For Steam, 395 Deg F For Hot Oil
• Pipe Size: 3/8 in
• Item: Rotary Union
• Type: 5000 Series
• Fitting Material: Stainless Steel
• Fitting Material Grade: 300
• Maximum Operating Temperature: 300 Degrees F
• Maximum Speed: 1,000 RPM
• Rotating Shaft Thread: 3/8"
• Seal Material: Ceramic Coated Steel
• Thread Rotation: Right Hand
• Fitting Body Material: 300 Stainless Steel
• Resistance Properties: Corrosion Resistance, Wear Resistance
• Temperature Range: 300 Degrees F
• Maximum Temperature for Fluid Types: 300 Degrees F (Water), 350 Degrees F (Steam), 395 Degrees F (Hot Oil)
• For Fluid Type: Air, Hot Oil, Steam, Water
• Flow Direction: Single-Flow
• Operating Pressure for Fluid Types: 100 psi (Hot Oil), 120 psi (Steam), 300 psi (Air), 750 psi (Water)
