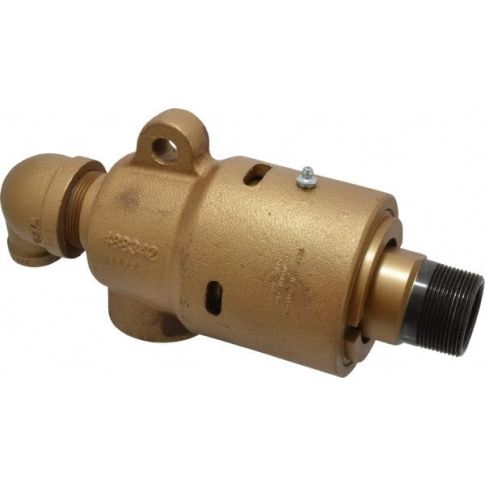

Duff-Norton 440146C Rotary Union 1-1/2 NPT Right Hand Rotor Thread

Product Description

The Duff-Norton 440146C is a Rotary Union designed for fluid transfer with a 1-1/2 NPT right hand rotor thread. It supports dual flow, making it effective for various applications including chemical and petrochemical processing. This rotary union operates effectively at temperatures up to 375 degrees Celsius and can handle a maximum shaft speed of 700 RPM.

• 1-1/2 NPT right hand rotor thread for straightforward installation
• Maximum machine thread RPM of 1500 for efficient operation
• Versatile design suitable for numerous industries like oil and gas

Product Highlights

This rotary union is essential for secure and efficient fluid transfer in diverse industrial applications.

Product Information

Standard Information

• Brand: Duff-Norton
• Manufacturer Part Number: 440146C

Technical Specifications

• Body Length: 11-3/8 inches
• Connection Type: Threaded
• Material: Iron; Stainless Steel
• Maximum Working Temperature: 375 degrees Celsius
• Overall Length: 11.375 inches
• Shaft Speed: 700 RPM
• Thread Standard: NPT
• Union Type: General Purpose
• Max Machine Thread RPM: 1500
• Max Pipe Thread RPM: 700
• Max Air PSI: 100
• Max Hot Oil PSI: 100
• Max Steam PSI: 150
• Max Water PSI: 250
• Body Material: Cast Iron
• Connection Style: Right Hand Thread
• Port Size: 1-1/2 inches
• Series: 9000 Series
• Thread Type: NPT
