Ductmate AIRBRACE45 Direct Mount Hanging Bracket for Condenser Units and Heat Pumps 45 inches

Product Description

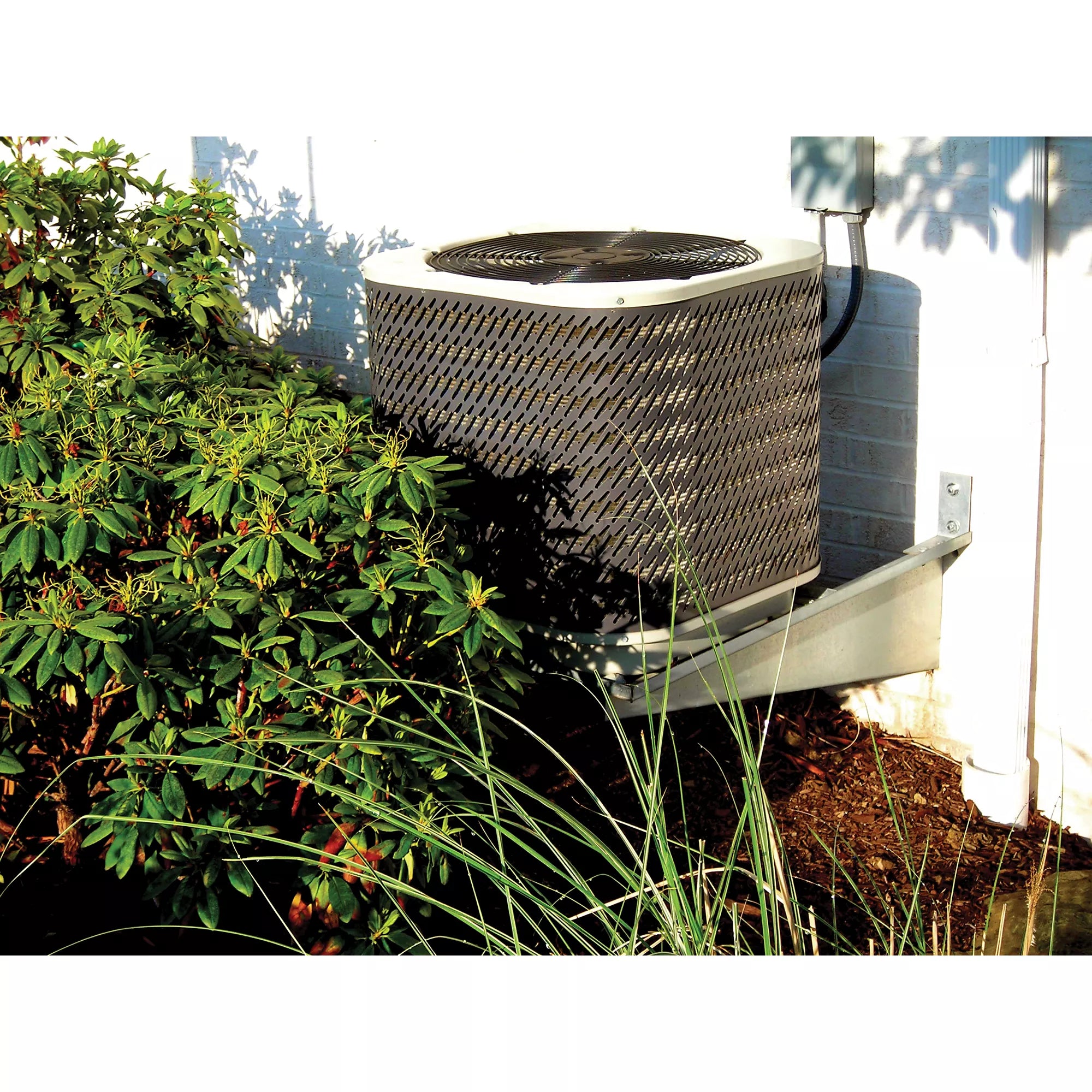

Designed by Ductmate, the AIRBRACE45 is a high-performance, direct mount hanging bracket primarily used for supporting condenser units and heat pumps. This bracket is engineered to reduce air blockage while elevating equipment above typical ground disturbances such as mud, snow, and moisture, facilitating easier accessibility.

• Engineered to meet stringent building codes.
• Constructed with 10 gauge mounting brackets, precision-punched for consistent spacing.
• Included Hurricane Straps enhance security and stability.

Product Highlights

The AIRBRACE45 avoids the need for leveling or final grading, making installation straightforward and time-efficient. It supports true, square 90-degree angle placements and is lightweight, making transportation and handling simple.

Product Information

Standard Information

• Brand: Ductmate
• Model: AIRBRACE45
• Type: Hanging Bracket

Technical Specifications

• Material: Galvanized Steel G90
• Size: 45 inches x 36 inches
• Weight: 24 pounds
• Includes: 6 Hurricane Straps (1 inch x 6 inches x 22 Gauge)
• Galvanized: Yes
• Engineered for: Hurricane regions
