Ducane 81W32 Ecm Blower Motor 1/2 Hp Furnace

Product Description

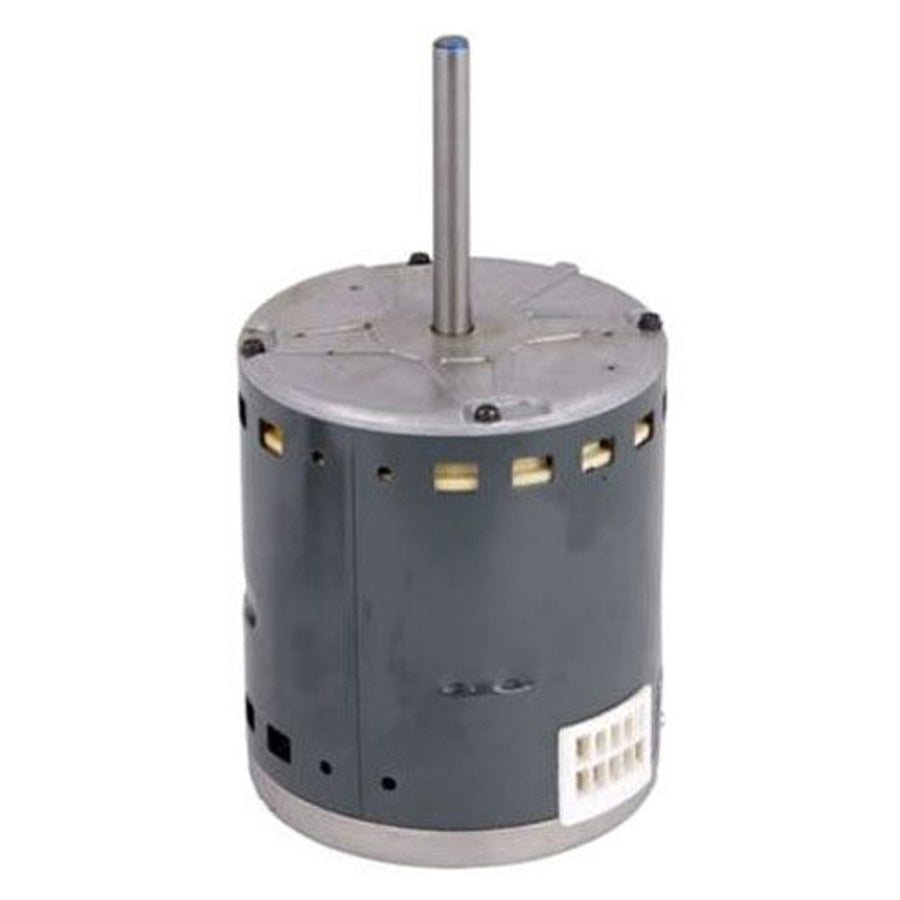

The DUCANE 81W32 is a programmed X13 ECM blower motor rated at 1/2 HP, designed for use in residential gas furnaces. ECM (electronically commutated motor) technology delivers variable-speed airflow control and improved efficiency compared to standard PSC motors. This motor comes factory-programmed for direct OEM-style installation, eliminating the need for external controllers or additional programming hardware. Licensed HVAC technicians typically handle replacement of this component as part of blower assembly service or system commissioning.

This motor is engineered for furnace blower applications where a factory-programmed X13 ECM unit is required. It is suited for residential forced-air heating systems. The part number 607421-01 is associated with this motor in supplier documentation. Installation typically occurs during blower motor failure diagnosis, scheduled maintenance, or full system changeouts on gas furnace platforms that call for a 1/2 HP ECM blower motor.

Key Features

• Factory-programmed X13 ECM design — no external module required
• 1/2 HP output for residential furnace blower duty
• Variable-speed ECM technology for improved airflow efficiency
• OEM-style direct replacement form factor
• Compact dimensions: 12.5 inches length x 10.5 inches width x 9.125 inches height

Compatibility

Designed as an OEM-style programmed ECM blower motor replacement for residential gas furnaces requiring a 1/2 HP X13-type motor. Supplier documentation references the 80G1UH045 furnace platform as an applicable unit.

Installation Notes

Installation should be performed by a licensed HVAC technician. Always disconnect and lock out power to the furnace at the disconnect switch and breaker before removing the blower assembly or disconnecting motor wiring. Verify the replacement motor matches the programmed profile required by the furnace control board before installation. Follow all applicable local mechanical codes and manufacturer service instructions when reassembling the blower deck and securing motor mounting hardware.

Technical Specifications

• Motor Type: ECM X13 Programmed Blower Motor
• Horsepower: 1/2 HP
• Application: Furnace Blower
• Length: 12.5 inches
• Width: 10.5 inches
• Height: 9.125 inches
• Gross Weight: 12.0 pounds
• UPC: 66255143127

Standard Information

• Brand: DUCANE
• Manufacturer Part Number: 81W32
