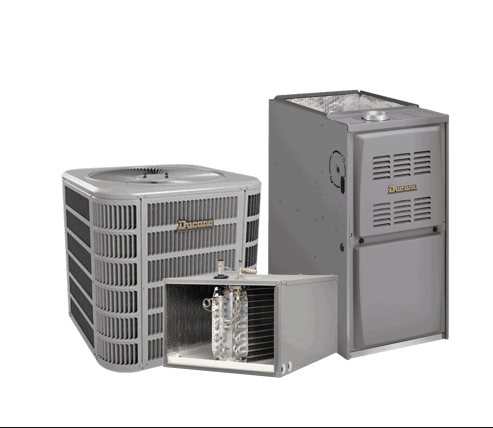

Ducane 3 Tons Gas Heat Horizontal Air Conditioner System - 15 SEER

SKU / MPN:
4AC16L36P-50A / 80G1UH045AE12 / A36H145P126
SKU / MPN: 4AC16L36P-50A / 80G1UH045AE12 / A36H145P126

$4,807.99
Notify Me

Buy a system bundle and save up to 10%!

SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED

Bundle Includes

Installation Accessories

Features

Ducane 3.0 Ton 14+ SEER Condensing Unit The 4AC16L delivers significant energy savings and efficiencies of up to 16 SEER when paired with a matched Ducane variable-speed or constant-torque furnace or air handler

Overview:

  • 3.0 Ton 14+ SEER Condensing Unit
  • 28.25 Inches Width x 28.25 Inches Depth
  • 3/8LL 7/8SL
  • 30A MOCP
  • 205 Lbs - Ships via Freight

Compressor:

  • High-efficiency scroll compressor
  • Internally protected against high temperature motor overload conditions
  • Heavy-duty materials

Cabinet:

  • Full metal louvered construction to protect the coil/hail protection
  • Individual louver panels; 4 screws to remove for ease of coil cleaning and service
  • Corner-mounted controls for easy service
  • Baked polyester paint finished over galvanized steel for maximum durability
  • 45-degree offset valves for easy service

Coils:

  • Omniguard total corrosion protection technology designed coil
  • Enhanced tube-and-fin coil design featuring MHT Technology
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leakproof construction
  • Raised coil prevents debris from impeding airflow

Components:

  • Factory installed high pressure switch
  • Thread-on pressure switches with Schrader core for simple, quick replacement
  • Filter drier shipped loose for installation flexibility
  • Fan orifice for smoother airflow and sound level reduction
  • Charged for 15 feet of line set

Warranty:

  • 10 year limited warranty on compressor
Ducane 80G1UH045AE12 - 1.5-3 Ton (80G1UH045AE12)
  • 1.5-3 Ton
  • 44 MBH Input
  • 80% AFUE
  • 1 Stage Gas Furnace
  • ECM CT Motor
  • 14.5 Inches Width x 33 Inches Height x 28 in. Depth
  • 111 Lbs
Advanced Distributor Products A36H145P126 - 1.5-3.0T Aluminum/Aluminum (A36H145P126)
  • 1.5-3.0T Aluminum/Aluminum
  • Painted Cabinet
  • Horizontal Only Evaporator Coil
  • W/TXV 14.5 Inches Height x 21.0 Inches Depth x 26.5 Inches Length
  • 44 Lbs

Specifications

Manuals

Safety Information

PROPOSITION 65 WARNING
By purchasing this item, you are agreeing to have this product installed by a trained technician. The installer or servicer assumes all responsibility for injury or property damage that may result. Refer to your local jurisdiction for installer licencing requirements.
