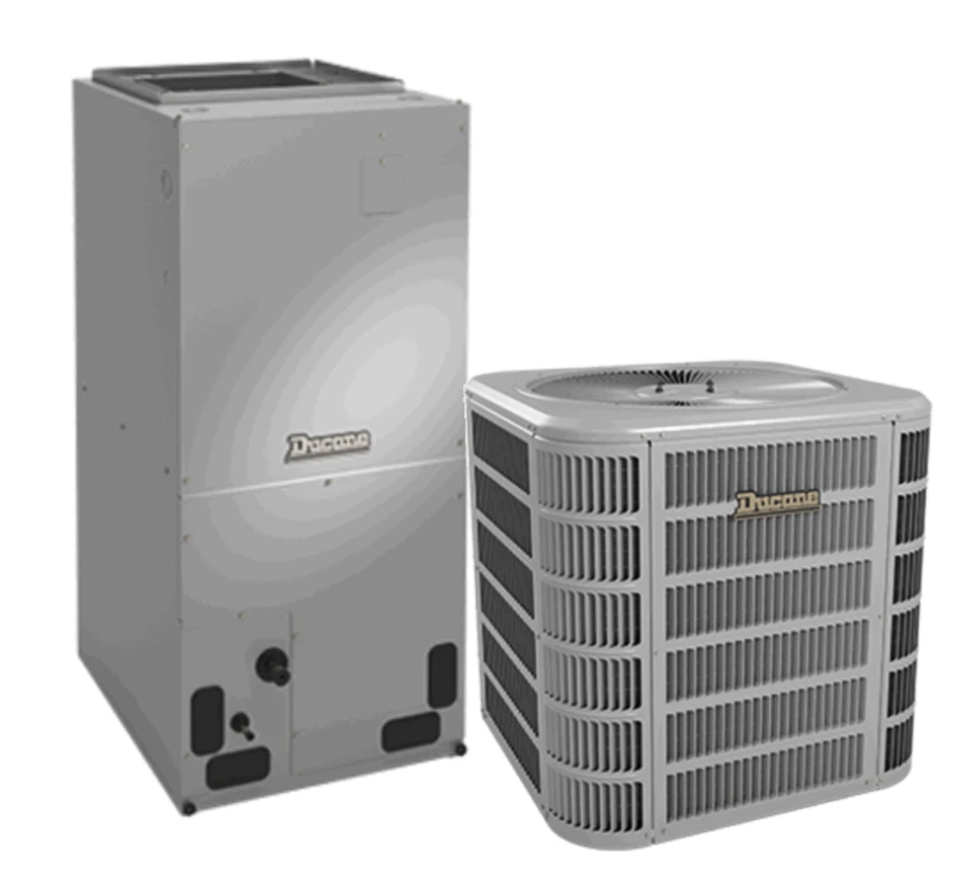

Ducane 3 Ton Residential Heat Pump Split System - 14 SEER

BCE5C Air Handling Unit:

Application

• For 3 ton systems
• Sequenced for demand management
• External access to heater circuit breakers

Installation

• 1 piece design
• Smaller profile for tight application areas
• Multiposition - Factory ready for upflow, downflow, and horizontal left/right applications
• Approved for installation in manufactured housing and mobile homes

Cabinet

• Foil faced insulation for enhanced indoor air quality
• Double hemmed technology for increased structural rigidity
• Improved gasketing on doors to prevent air leaks
• Filter rack with thumb screws for easy access and removal
• Polymer plugs on drain locations for easy installation
• Baked polyester paint finished over galvanized steel for maximum
• durability
• High-strength, UV and heat resistant polymer drain pan designed for
• corrosion resistance
• Antimicrobial polymer drain pan built to resist mold and mildew
• growth
• 2% or less air leakage

Coils

• Omniguard™ total corrosion protection technology designed coil
• Enhanced tube-and-fin coil design featuring MHT™ Technology
• Lanced fins for maximum heat transfer
• Factory leak tested and pre-charged with nitrogen holding charge

Components

• Efficient PSC blower motor
• Standard transformer and blower relay
• Blower time delay for increased efficiency
• Sleeves on distributor tubing to protect tubes

Warranty

• 10 year limited warranty on all parts

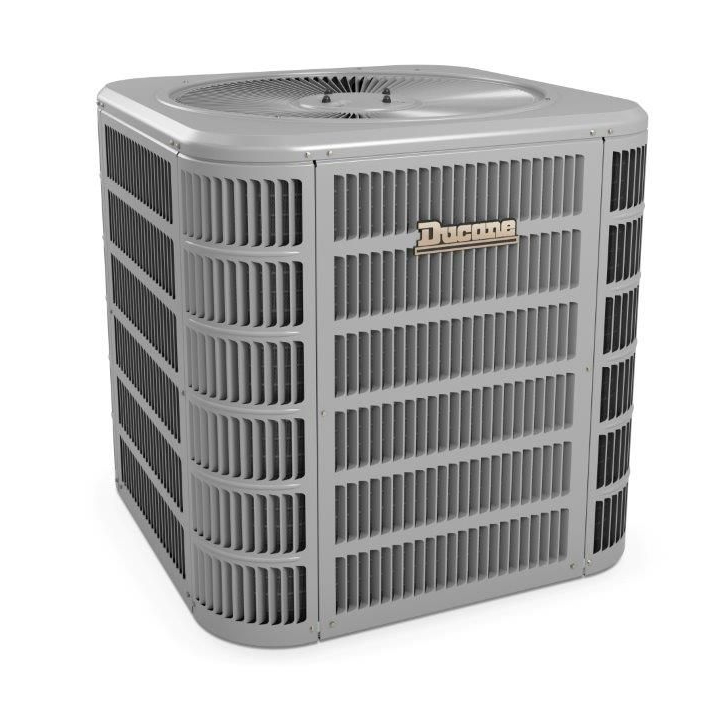

4HP15 Heat Pump Unit:

 Compressor

• High-efficiency scroll compressor
• R410A refrigerant
• Grommet mounted compressor for quiet operation
• Heavy-duty compressor sound blanket for quiet operation
• Internally protected against high temperature motor overload conditions

Cabinet

• Full metal louvered construction to protect the coil
• Individual metal louvered panels remove easily for coil cleaning and service
• Corner-mounted controls for easy service
• Baked polyester paint finished over galvanized steel for maximum durability
• 45-degree offset gauge ports for easy service
• External gauge ports for easy service

Design

• Designed to perform in temperatures up to 125°F
• Designed to perform in temperatures down to 0°F TM

Coils

• Omniguard™ total corrosion protection technology designed coil
• Enhanced tube-and-fin coil design featuring MHT™ Technology
• Lanced fins for maximum heat transfer
• Factory tested for leakproof construction
• Raised coil prevents debris from impeding airflow

Components

• 45-degree offset gauge ports for easy service
• Factory installed high and low pressure switches
• Thread-on pressure switches for simple, quick service
• Factory installed filter dryer
• Fan orifice for smoother airflow and sound level reduction
• Charged for 15 feet of line set
• Discharge muffler for quiet operation
• Quiet Shift™ capable to reduce noise during defrost

Warranty

• 10 year limited warranty on compressor
• 10 year limited warranty on all parts
