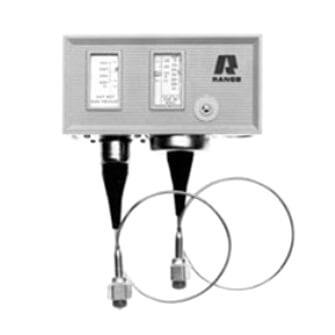

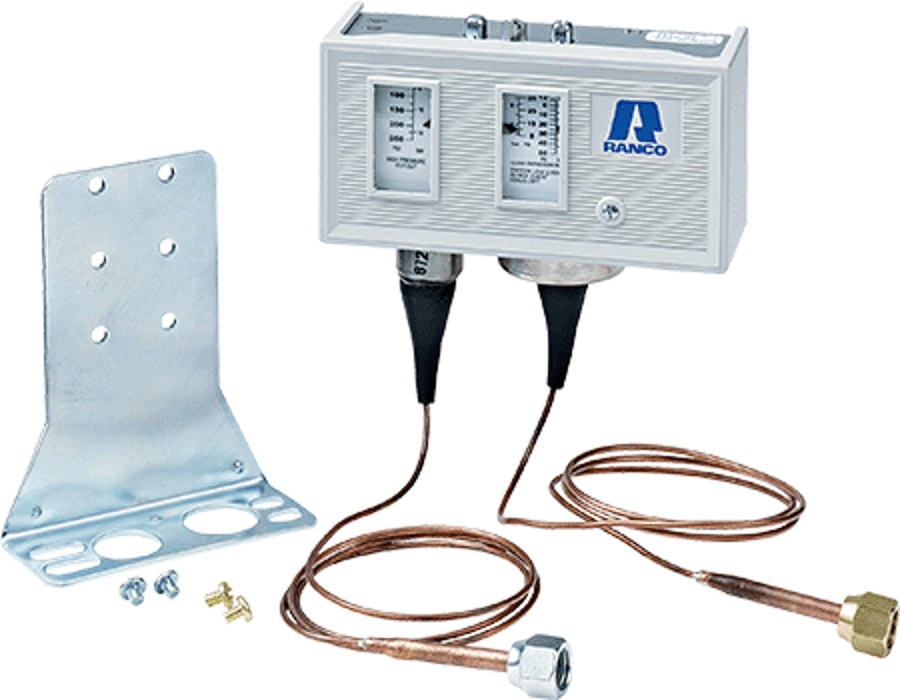

Ranco O12-1550 Dual Pressure Control, 10 Hg-100 psi In/150-450 psi Out SPST

Product Description

The Ranco O12-1550 is a dual pressure control designed for refrigeration systems. It operates within a range of ten inches of mercury to one hundred psi for input and one hundred fifty to four hundred fifty psi for output. This pressure control is essential for maintaining safe operational pressures in HVAC and refrigeration applications.

• Operates in a range from 10 Hg to 100 psi input and 150 to 450 psi output
• SPST switching capability
• Ideal for various refrigeration applications

Product Highlights

This product combines both high and low pressure controls within a single unit for convenience and efficiency, making it suitable for both commercial refrigeration and HVAC systems.

Product Information

Standard Information

• Brand: Ranco
• MPN: O12-1550

Technical Specifications

• Switching: SPST
• Cut-In: 10 Hg - 100 psi
• Cut-Out: 150 - 450 psi
• Connection Ends: 1/4 SAE Male Flare Nut
• Enclosure: NEMA 1 with non-conductive cover
• Weight: 1.81 lbs
• Dimensions: 8.2 inches (L) x 5.65 inches (W) x 2.7 inches (H)
• High Pressure Limit: Adjustable
