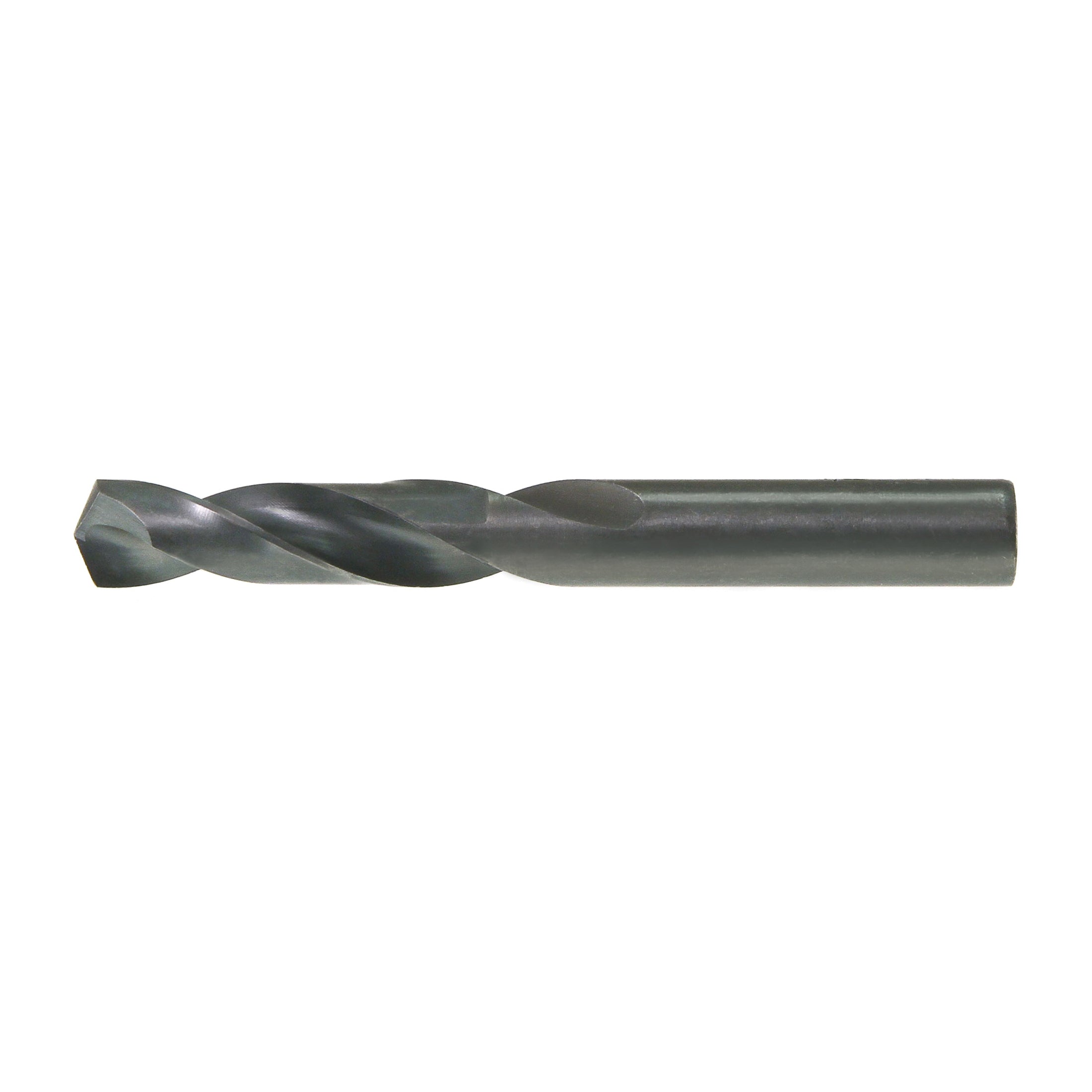

Drillco DRIDI-380A030 Type C Heavy Duty Stub Length Screw Machine Length Drill #30 Drill - Wire 0.0551 in

Product Description

The Drillco DRIDI-380A030 is a Type C heavy-duty stub length drill. This drill is designed for use in machines and portable drilling, primarily suited for hard sheet materials, including stainless steel and titanium. With a cutting diameter of #30, this drill features high-speed steel (HSS) construction and a black oxide finish for improved durability.

• Overall length of one and fifteen-sixteenths inches
• Right-hand cutting direction with a split point design
• Spiral flute for effective chip removal

Product Highlights

The Drillco DRIDI-380A030 is efficient for various drilling applications, especially in metalworking tasks.

Product Information

Standard Information

• Brand: Drillco
• MPN: DRIDI-380A030

Technical Specifications

• Cutting Depth: 15/16 in
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 15/16 in
• Flute Type: Spiral
• Overall Length: 1-15/16 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 380
• Shank Type: Straight
• Drill Size - Wire: #30
• Drill Size - Decimal Inch: 0.0551 in
• Finish: Black Oxide
• Applicable Materials: Stainless Steel and Titanium
