Dresser Water 01180300009 Style 118 Repair Clamp Handiband

Product Description

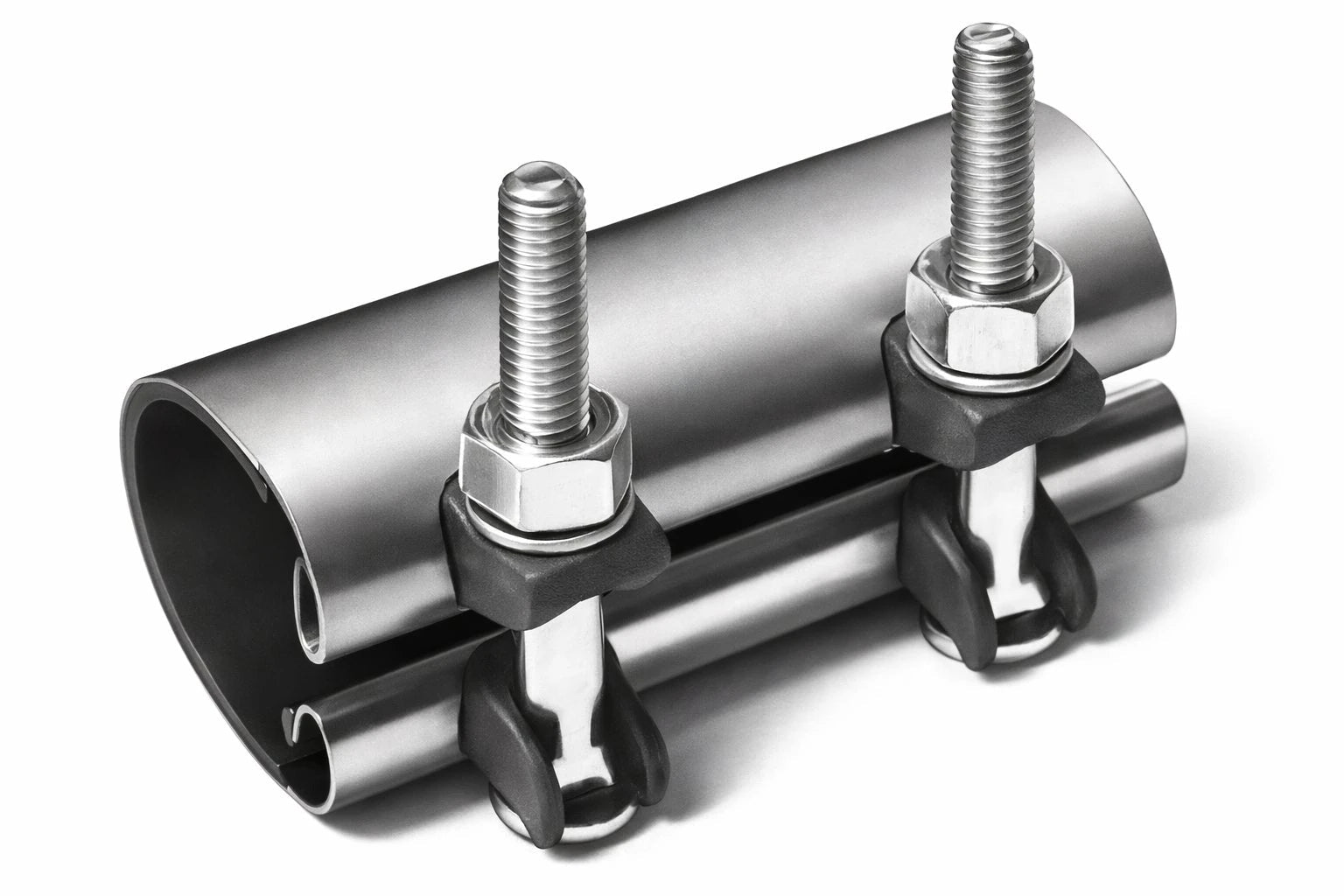

The DRESSER WATER 01180300009 Style 118 Handiband™ Clamp is a low-cost band-type repair clamp for sealing pinhole leaks, small holes, and cracks in steel pipe. Installation involves wrapping the clamp around the pipe and tightening the nuts. The stainless steel band resists corrosion, and the rubber gasket resists oils, hydrocarbons, gasoline, and condensates.

• Fast, permanent repair of pinhole leaks and cracks in steel pipe — no pipe cutting required
• Foolproof installation: wrap, drop bolts through slotted lugs, tighten nuts
• Ships fully assembled — no loose parts to misplace in the field

Product Highlights

The Style 118 clamp is constructed with a Type 304 stainless steel band for corrosion resistance and ductile iron lugs for durability. Available in 3", 6", and 12" lengths to cover a range of defect sizes, in pipe sizes 1/2" through 8".

Product Information

Standard Information

• Brand: DRESSER WATER
• Manufacturer Part Number: 01180300009

Technical Specifications

• Band: Stainless Steel 18-8, Type 304
• Lugs: Ductile Iron ASTM 536
• Bolts & Nuts: Alloy to ANSI A21.11
• Gasket: Gridded to Dresser Specifications
