Draper 121222 LVC-IV Low Voltage Control Module 110 V (1 Pack)

Brand: DRAPER
SKU: 121222
Availability: In Stock

Ships same day if ordered by 12 pm
$514.44
$514.44
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

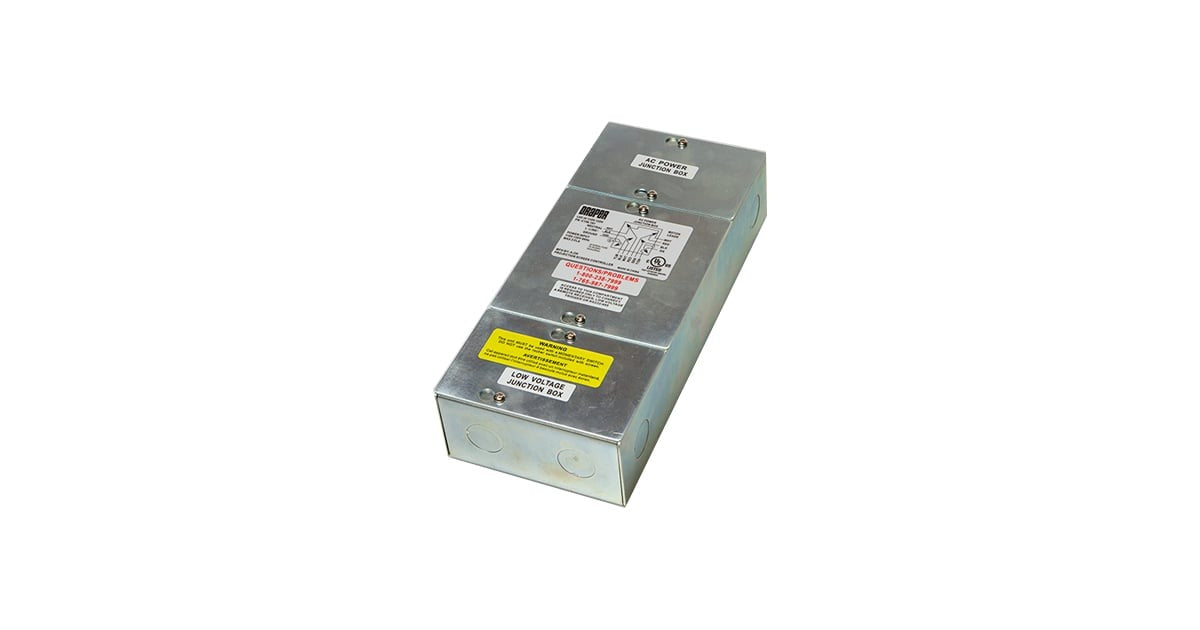

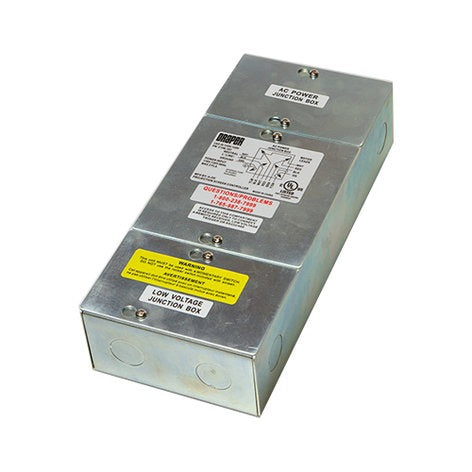

Draper 121222 (LVC-IV) is a low-voltage control module for 110 V motorized projection screens. It provides control of a single 110 V motor and supports multiple input methods including dry-contact wall switches, IR, built-in RF, serial (RS232/RS485) via RJ25 ports, and a low-voltage relay (4 V - 28 V). The module is UL listed, housed in a three-compartment box, and includes a user-serviceable 3.5 A fuse.

  • Controls a single 110 V motor for motorized projection screens
  • Multiple input methods: dry-contact terminal block, IR jack, built-in RF, two RJ25 ports for RS232/RS485, and low-voltage relay (4 V - 28 V)
  • UL listed three-compartment enclosure; includes low-voltage relay cable and user-serviceable 3.5 A fuse

Product Highlights

Single 110 V motor control with multiple input options including IR, RF, serial; UL listed enclosure and user-serviceable 3.5 A fuse.

Product Information

Standard Information

  • Brand: DRAPER
  • Manufacturer Part Number: 121222
  • Country of Origin: Unknown
Technical Specifications
Brand
Draper
MPN
121222
Model
LVC-IV
Product Type
Low voltage control module
Input Voltage
110 V
Controls
Single 110 V motor
Supported Control Methods
Dry-contact wall switch terminal block, IR receiver jack, built-in RF receiver, RS232/RS485 via two RJ25 ports, low-voltage relay
Low-voltage Relay Range
4 V - 28 V
Fuse
User-serviceable 3.5 A fuse
Enclosure
Three-compartment single box
Listing
UL listed
Includes
Terminal block, IR receiver jack, built-in RF receiver, two RJ25 ports, low-voltage relay port with cable, user-serviceable 3.5 A fuse
Dimensions
12 x 7 x 7 inches
Weight
5 lb
Package Quantity
1
Intended Use
Motorized projection screens
Compatibility
Draper devices LVC-S, WRT/R, IRT/R, KS-1, SP-KSM
Power Source
AC
Country of Origin
Unknown
