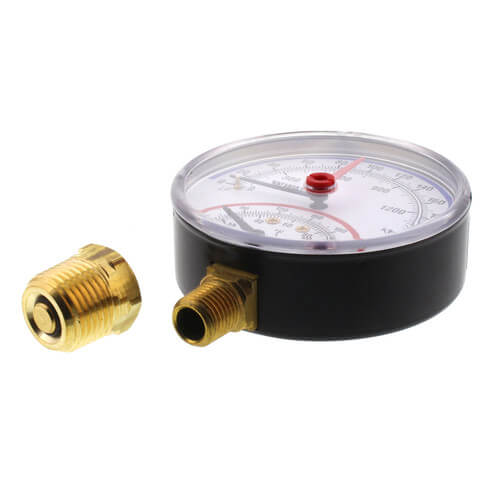

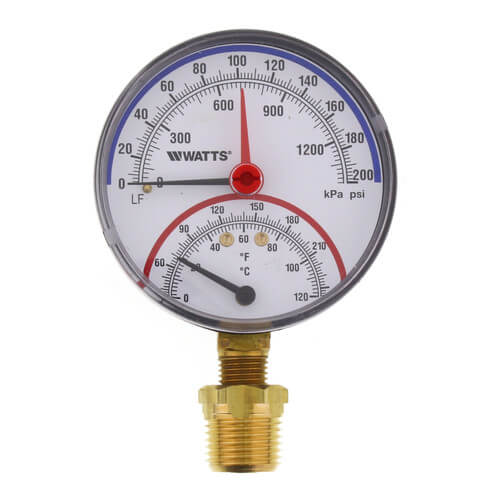

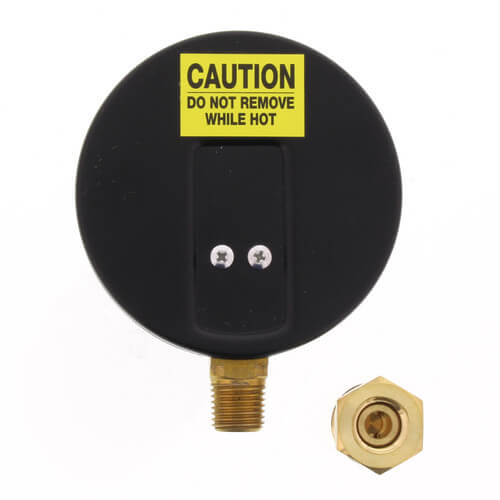

Watts 0121665 LFDPTG-1 3 Bottom Entry Pressure Temperature Gauge 0-200 psi

Product Description

The Watts 0121665 LFDPTG-1 3 Bottom Entry Pressure and Temperature Gauge is designed for HVAC applications. It has a black enamel steel case, Kostil polymer windows, and copper alloy Bourdon tube pressure elements. It features a 1/2 inch NPT connection and a bimetal spiral spring. It delivers precision with ASME Type B accuracy.

• Used in HVAC applications
• Features dual pressure and temperature scales
• ASME Type B accuracy

Product Highlights

Ideal for measuring pressure and temperature in HVAC systems with a robust design ensuring durability and precision.

Product Information

Standard Information

• Brand: Watts
• MPN: 0121665
• Type: Dry
• Mount: Bottom
• Material: Steel Case, Copper
• Measures: Fahrenheit, Celsius, Pressure
• Dial Size: 3 inches

Technical Specifications

• Weight: 0.46 pounds
• Max Temp (F): 248
• Min Temp (F): 32
• Max Pressure (PSI): 200
• Accuracy: ASME Type B
• Connection: 1/2 inch NPT
• Pressure Element: Copper alloy Bourdon tube
• Temperature Element: Bimetal spiral spring
