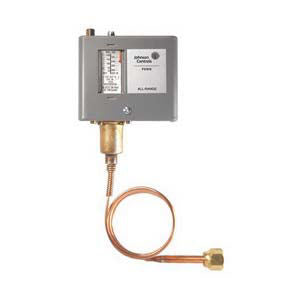

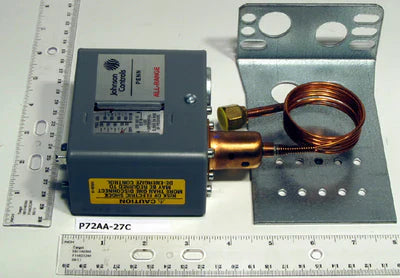

JOHNSON P72AA-27C DPST Pressure Control 100/400# Diff 35/200 36 Cap 1/4 Flare

Product Description

The Johnson Controls P72AA-27C DPST Pressure Control is designed for use with low pressure cut-out, pump-down control, and capacity control in commercial refrigeration and air conditioning applications. This pressure control is compatible with most common refrigerants and available in various pressure ranges.

• Durable all-steel case
• Visible pressure scale with calibrated adjustment
• Manual reset lockout option

Product Highlights

This pressure control features a double-pole single-throw (DPST) switch capable of direct control of 208-240 volt single-phase motors up to 3 hp, and 208-220 volt three-phase motors up to 5 hp. The all-steel case ensures internal components are protected. Its sight-set calibrated pressure adjustment allows for easy adjustments without removing the cover, and the manual reset lockout ensures system safety.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P72AA-27C

Technical Specifications

• Differential: 35-200 psi
• Voltage: 120/240 VAC
• Width: 4.5 inches
• Height: 2.6 inches
• Length: 10.3 inches
• Weight: 1.96 lbs
• Enclosure Type: NEMA 1
• Pressure Range: 100-400 psi
• Connection Type: 1/4 Inch Flare Nut
• Capillary Length: 36 inches
• Cycle/Hertz: 50/60 Hz
• Phase: Single
• Country of Origin: Mexico
• Prop 65: Yes
