Product Description

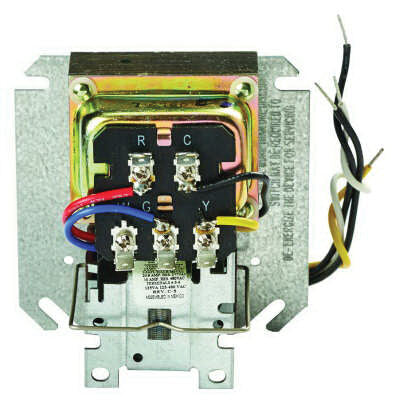

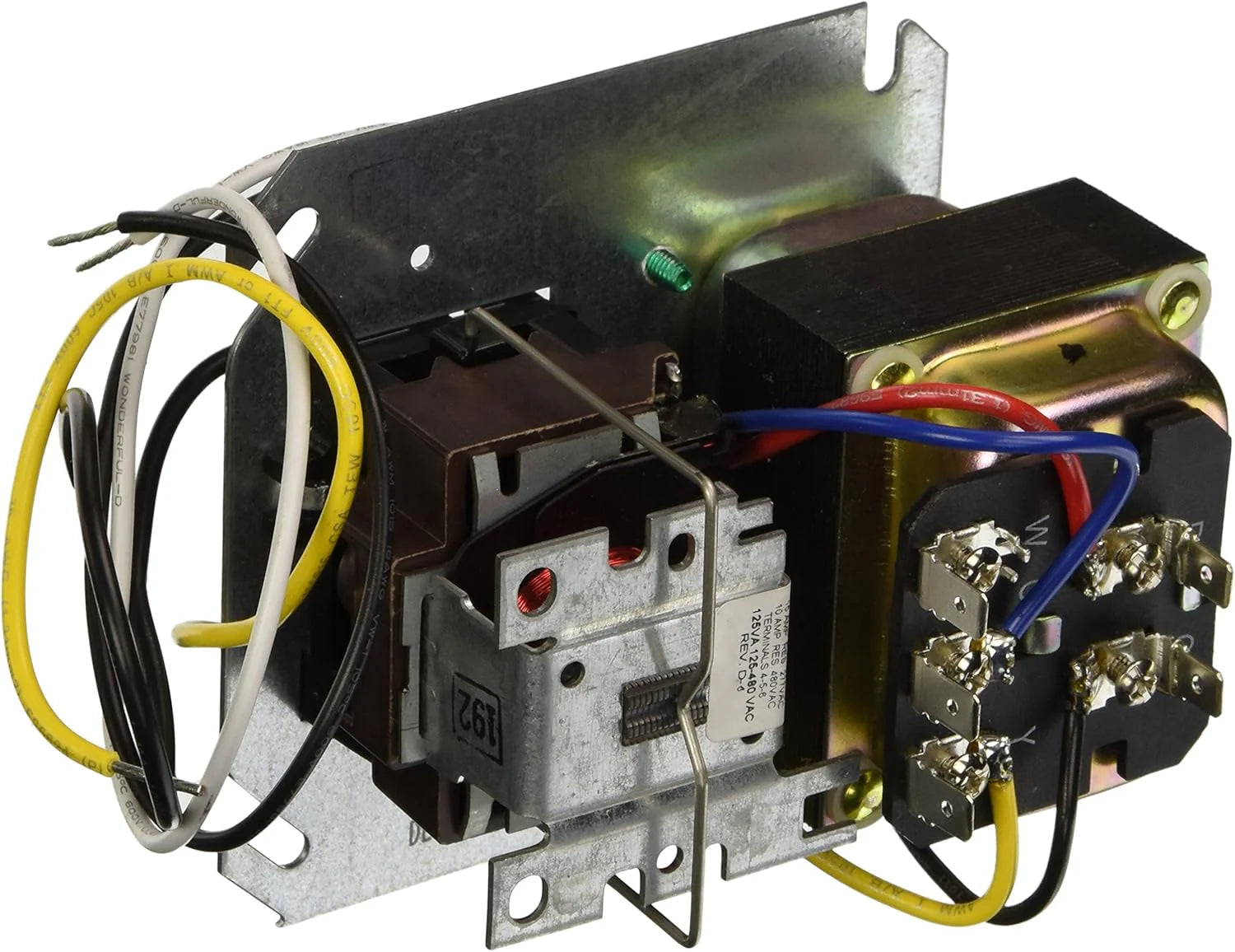

The Honeywell R8285D5001 Boiler Control Center is engineered to provide low voltage control of line voltage fan motors and auxiliary circuits in a variety of HVAC applications. This reliable control center is designed by Honeywell, a leader in control technology, ensuring superior performance and durability.
- Effortless installation and easy wiring configuration.
- Designed for both heating and air conditioning systems.
- Supports 120 Volts and 50 VA fan center applications.
Product Highlights
Includes a DPST switching action and a transformer that powers low voltage control systems while providing overload protection. Its low voltage terminal board offers convenient connections for thermostat and equipment wiring, making it ideal for professional setups.
Product Information
Applications and Usability
This control center is suitable for hydronic applications and can be used with the Honeywell SV9600 SmartValve system and other similar systems that require 50 VA capacity.
Technical Specifications
-
Electrical Ratings: 120 Volts, 60 Hz
-
Control Capability: DPST (One Power Rated, One Pilot Duty)
-
Product Dimensions: 4-1/2 inches Width x 4-3/16 inches Height x 2-13/16 inches Depth
-
Installation: Mounts on standard 4 x 4 inch junction box
