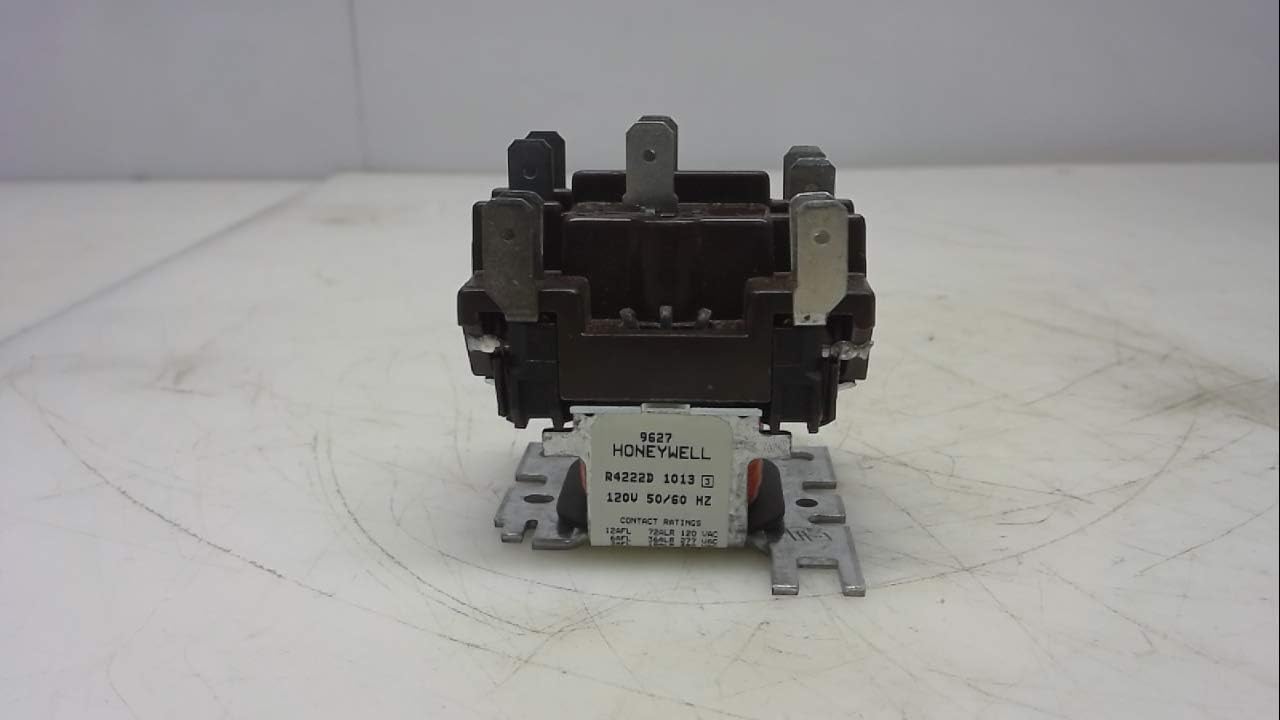

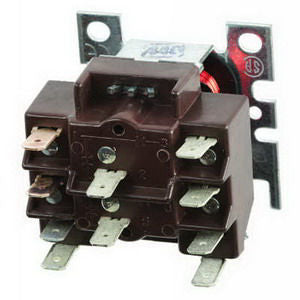

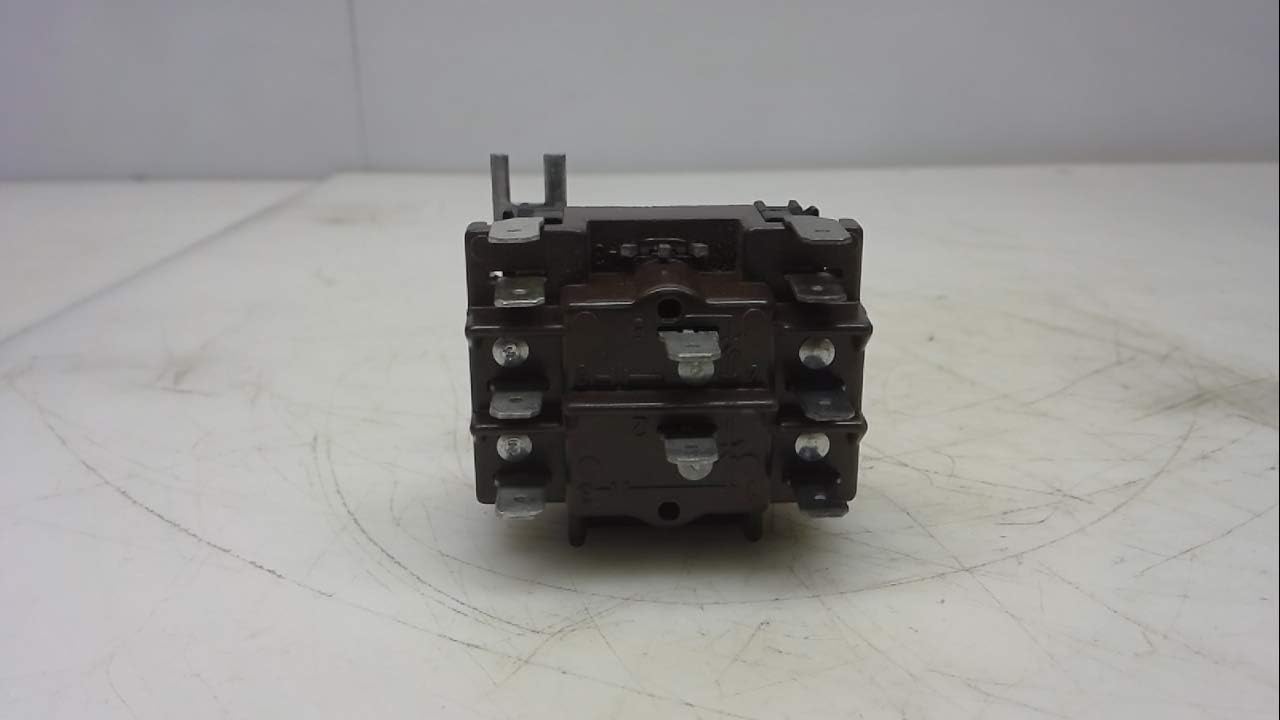

Honeywell R4222D1013 120 V General Purpose Relay with DPDT Switching

Product Description

The Honeywell R4222D1013 120 V General Purpose Relay with DPDT Switching is a versatile relay suitable for various applications. It ensures efficient operation in refrigeration, air conditioning equipment, and vending machines.

• Quick-connect coil terminals
• Laminated magnet construction
• Easy wiring identification

Product Highlights

This relay features a quick-connect coil terminal design and a laminated magnet construction for higher efficiency. The molded terminal numbers and circuit diagram on top make wiring identification straightforward.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R4222D1013

Technical Specifications

• Voltage: 120 V
• Contact Configuration: DPDT
• Operation Mode: Automatic
• Contact Current Rating: 12 Amps
• Connector Type: Quick Connect
• Dimensions: 1-7/8 Inch L x 2-5/32 Inch W x 2-3/8 Inch D
• Application: Refrigeration, Air Conditioning Equipment, and Vending Machines
• Standard/Approvals: CSA Certified, UL Listed
