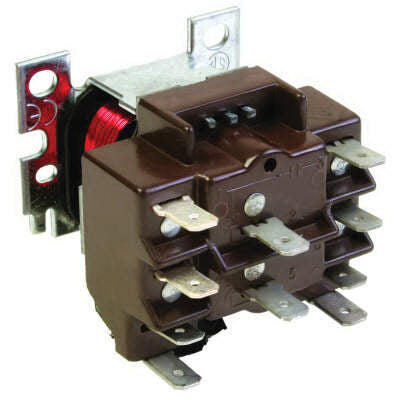

Honeywell R8222N1011 General Purpose Switching Relay 24V DPDT Quick-Connect

Product Description

The Honeywell R8222N1011 is a general purpose switching relay designed for a variety of applications. This relay operates at twenty-four volts and features a double pole double throw (DPDT) configuration. It is suitable for use in HVAC systems, refrigeration and air conditioning units, and appliances that require reliable switching functionality.

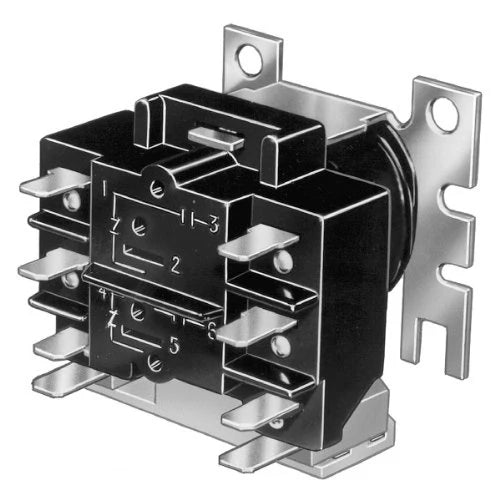

• Molded terminal numbers and circuit diagram on top of relay allow easy wiring and system operation checks.
• Open coil design ensures cooler operation during use.
• Laminated magnet construction provides higher efficiency for reliable performance.

Product Highlights

This relay is equipped with double quick-connect coil terminals for easy installation and compatible with common relay models.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: R8222N1011

Technical Specifications

• Voltage: 24V
• Amperage: 10A
• Switching Type: DPDT
• Frequency: 50/60Hz
• Dimensions: 1-7/8 x 2-5/32 x 2-3/8 inches
• Temperature Rating: -20°F to 150°F
• UL Listed
• CSA Certified
