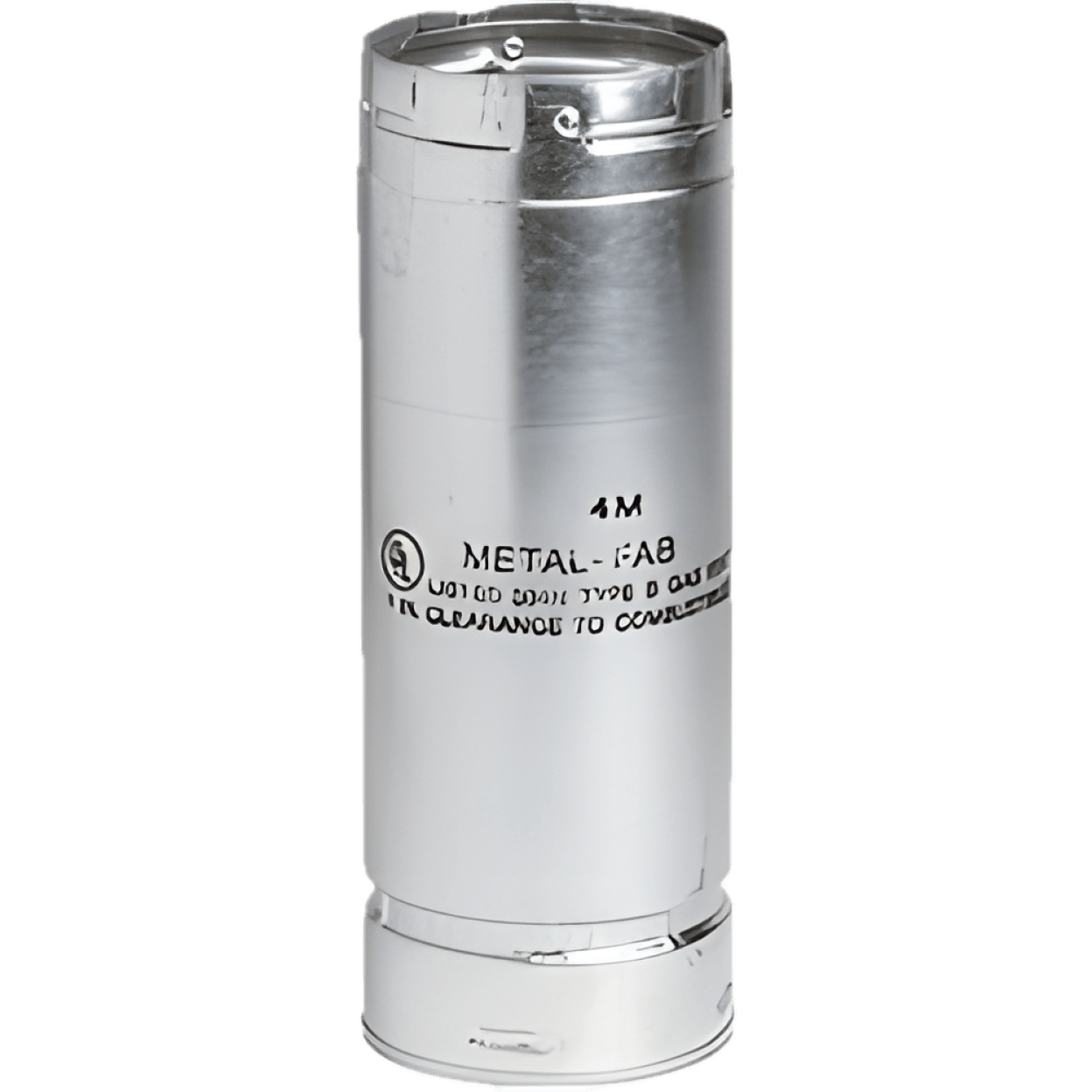

Metal-Fab 8M5 Twist-Lock Type B Double Wall Round Gas Vent Pipe, 8 Inch Diameter x 5 Feet Length

Product Description

The Metal-Fab 8M5 is a Twist-Lock Type B double wall round gas vent pipe with an eight-inch diameter and a five-foot length. This product is made of a 0.012-inch aluminum alloy flue and a 0.018-inch G90 galvanized steel casing. It is designed to handle flue gases from gas appliances efficiently.

• Type B Gas Vent for both natural and LP gas appliances.
• Temperature rating up to five hundred thirty degrees Fahrenheit.
• Meets UL 441 and NFPA 54/211 standards.

Product Highlights

This pipe is suitable for use with gas boilers, fireplaces, furnaces, unit heaters, and radiant tube heaters. The twist-lock end type facilitates easy installation and connection.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 8M5

Technical Specifications

• Type: Double Wall, Round, Type B Gas Vent
• Size: Eight Inches
• Length: Five Feet
• Material: Aluminum alloy (flue), G90 galvanized steel (casing)
• Material Thickness: 0.012 inches (inner wall), 0.018 inches (outer wall)
• End Type: Twist-Lock
• Temperature Rating: 530 degrees Fahrenheit
• Applicable Standards: UL 441, NFPA 54/211
• Clearance: One Inch
• Weight: 11.5 lbs
