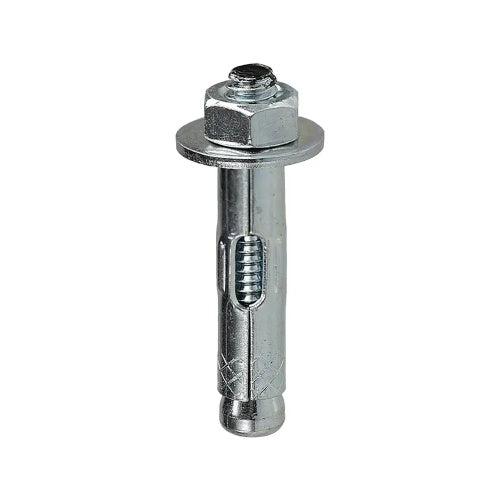

Dottie SA516212 Anchor 5/16 feet' x 2-1/2 feet' Sleeve Anchor w/ Hex Nut

Product Description

The DOTTIE SA516212 Anchor is a preassembled expanding anchor designed for use in concrete, cement, block, thin wall/solid concrete, brick, or stone. Its unique design allows it to be used in soft concretes, distributing the compression load over a longer length. It can be installed through the fixture.

• Pre-Assembled
• Single Piece All Steel Sleeve
• Versatile Use
• Can Be Installed Through the Fixture

Product Highlights

This sleeve anchor features a single piece all steel sleeve and can be installed through the fixture. Ideal for normal and lightweight concrete applications.

Product Information

Standard Information

• Brand: DOTTIE
• Manufacturer Part Number: SA516212
• Country of Origin: China

Technical Specifications

• Brand Name: Dottie
• ADI Part Number: LH-SA516212
• Manufacturer Part Number: SA516212
• Anchor Type: Sleeve
• Nut Type: Hex
• Thread Type: UNC
• Anchor Diameter: 5/16''
• Head Diameter: 11/16''
• Anchor Length: 2-11/16''
• Thread Length: 2-1/2''
• Thread Per Inch: 18
• Material: Carbon Steel
• Finish: Zinc Plated
• Cement Type: Various PSI
• Standard Qty: 100
• Master Qty: 500
• Pre-Drill Size: 5/16''
• Minimum Embedment Depth: 1-1/4''
• Applications: Normal and Lightweight Concrete, Soft Concrete
• Special Features: Pre-Assembled, Single Piece All Steel Sleeve, Versatile Use, Can Be Installed Through the Fixture
• UNSPSC: 31162101
• RoHS Compliant: Yes
• Manufacturer: Dottie
• Component: Anchors
• Sub Component: Sleeve Anchor
• ECCN: EAR99
• Country of Origin: China
• UPC: 78100259336
• Packaging: 100 per Pack
• Diameter: 5/16 in.
• Overall Length: 2-11/16"
• Thread Size: 3/8"-16
• Drill Bit Size: 5/16 in.
• Minimum Installation Depth: 1-3/8 in.
• Item: Sleeve Anchor
• Head Type: Hex Nut
• Drive Type: Hex
• Material Type: Steel
