Dottie DOTSSC38B Anchor 3/8 inches-16 Concrete Bottom Mount Rod Hanger

Product Description

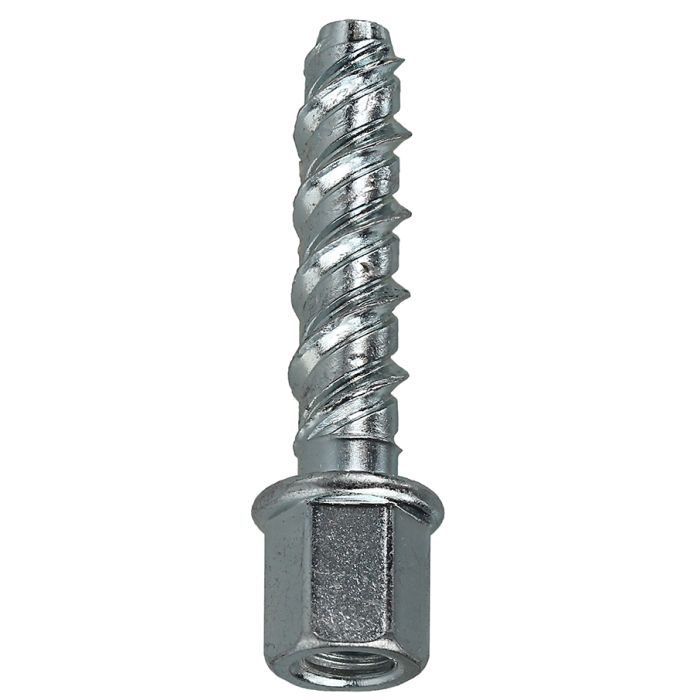

The DOTTIE DOTSSC38B anchor is manufactured for use in concrete slabs, beams, or concrete over metal where threaded rod is intended to be suspended. These carbon steel fasteners are robust screw anchors with threads that cut deep, creating a self-tapping concrete screw that offers low installation torque.

• Self Tapping
• Unique Thread Design
• Quick & Easy Installation
• Hardened Carbon Steel

Product Highlights

Suitable for electrical conduit and cable-tray applications, pipe hanging, fire protection, and suspension of HVAC equipment.

Product Information

Standard Information

• Brand: DOTTIE
• Manufacturer Part Number: DOTSSC38B
• Country of Origin: Unknown

Technical Specifications

• Product Class: Rod Hanger
• Anchor Type: Rod Hanger
• Thread Type: UNC
• Screw Size: 1/4'' x 1-1/4''
• Rod Size: 3/8''
• Head Diameter: 1/2''
• Shank Length: 1-1/2''
• Thread Per Inch: 20
• Material: Carbon Steel
• Finish: Zinc Plated
• Mount Style: Bottom
• Applications: Concrete Slabs, Beams, or Concrete Over Metal
• Special Features: Self Tapping, Unique Thread Design, Quick & Easy Installation, Hardened Carbon Steel
• UNSPSC: 31161639
• RoHS Compliant: Yes
• Overall Length: 1-1/2
• Series: 4600
• Type: Bottom Mount Concrete Drilling
• Use With: Hanging Attachement with Pre-Drilled Hole
• Brand Name: Dottie
• Manufacturer Part Number: SSC38B
• Product Model: SSC38B
• Diameter: 1/2"
• Threads Per Inch (TPI): 20
• Tensile Strength: 1475
• Pre-Drill Size: 1/4'' ANSI
