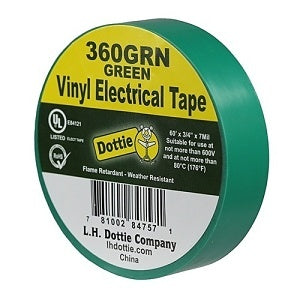

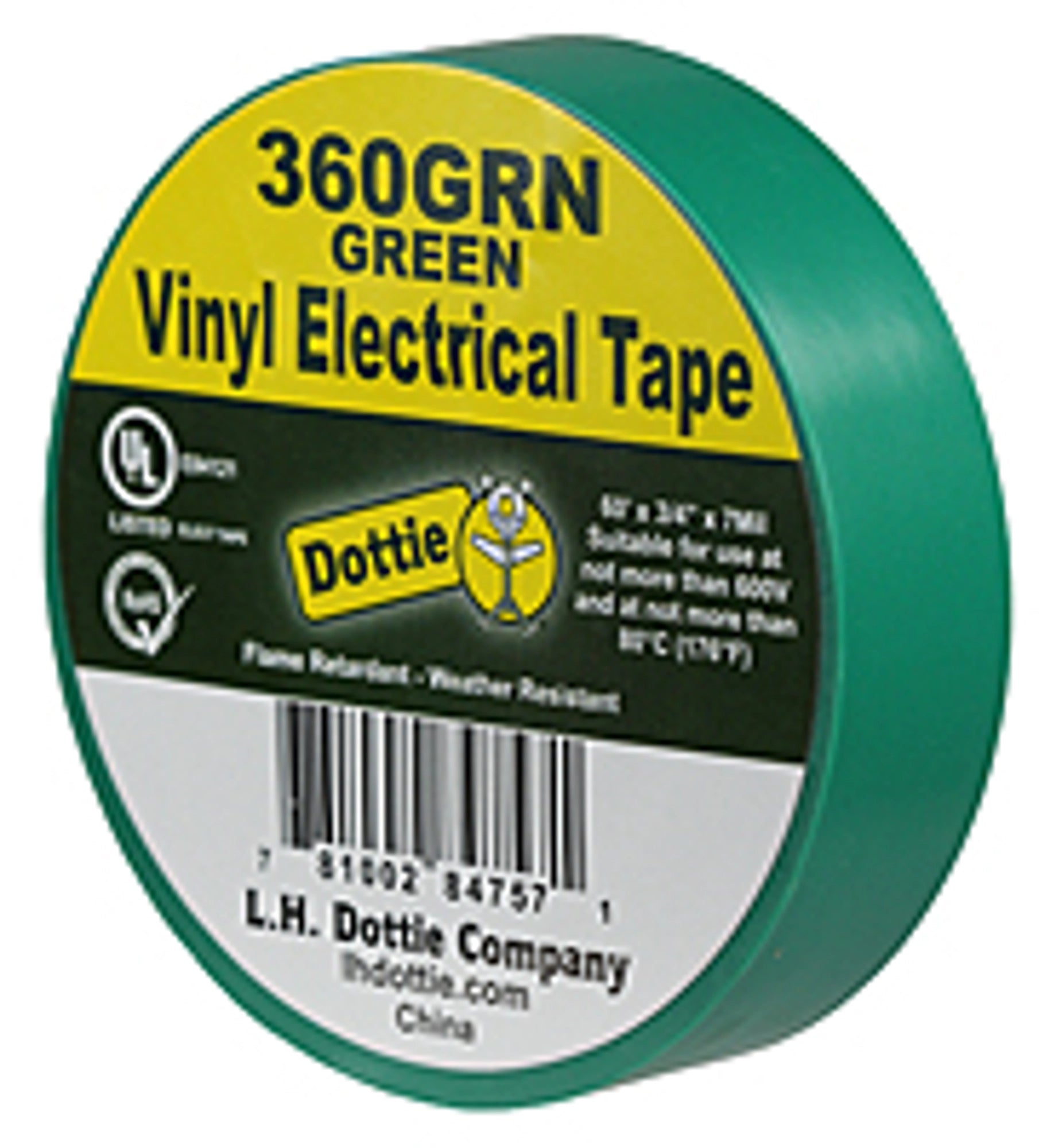

Dottie 360GRN 3/4in 60ft 7mil Premium Color Coding PVC Tape replacement mpn

Product Description

The DOTTIE 360GRN is a 3/4in, 60ft, 7mil premium color coding PVC tape. This tape is mainly used for protection and insulation over wires and connectors, splicing and filler compounds, wire harnessing and home maintenance, and the holding of high voltage electrical appliances.

• Marking, identifying, and insulating
• Flame-retardant
• Performs well in all climates

Product Highlights

This PVC tape is ideal for color coding, marking, and insulating electrical components. It features strong tensile strength and is flame-retardant.

Product Information

Standard Information

• Brand: DOTTIE
• Manufacturer Part Number: 360GRN
• Country of Origin: China

Technical Specifications

• Brand Name: Dottie
• ADI Part Number: LH-360GRN
• Manufacturer Part Number: 360GRN
• Type: Color Coding Tape
• Size: 3/4'' x 60'
• Length (ft): 60'
• Width (in): 3/4''
• Thickness (in): .007''
• Thickness (mil): 7 mil
• Material: Polyvinyl Chloride
• Backing Material: Vinyl
• Tensile Strength: 7 KG/in
• Tensile Strength (N\cm): 27.5 N/cm
• Elongation: 2
• Applications: Marking, Identifying, Insulating,Wire Harnessing, Jacketing on High Voltage Splices
• Temperature Range: 32°F to 176°F
• Dielectric Strength: 1200 V/mil
• Voltage Rating (V): 600V
• Resistant to: UV, Acids, Abrasion & Corrosion
• Adhesion to Steel: 16 oz/in
• Adhesion to Backing: 16 oz/in
• For Use With: Wires, Connectors, Filler Compounds, & Electrical Appliances
• UV Resistance: Yes
• Special Features: Flame-Retardant, Strong Tensile Strength, Performs Well in All Climates, Individual Cello Wrapped
• UNSPSC: 31201524
• Industry Standards: UL Listed
• RoHS Compliant: Yes
• Country of Origin: CN
• Environmental Certification: RoHS
• Adhesion Strength: 1.5 N-cm Steel, 0.15 N-cm Backing
• Adhesive Material: Rubber
• Maximum Operating Temperature: 80 deg C
• Minimum Operating Temperature: -10 deg C
• Specifications Met: UL Listed, CSA Certified
• Voltage Rating: 600 VAC
