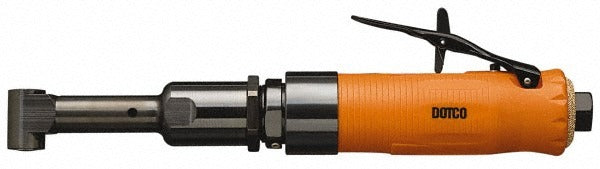

Dotco 15LF284-62 Right Angle Air Drill 0.40 Hp

Product Description

The DOTCO 15LF284-62 is a right angle pneumatic drill built for tight-access drilling applications in production, assembly, and fabrication environments. It delivers 2,400 RPM at 90 psi operating pressure and produces 0.40 horsepower, making it well-suited for drilling metal, plastic, and composite materials where a straight inline tool will not fit. The 1/4 inch keyed chuck provides a secure bit grip for consistent, repeatable work. At 1.7 pounds and 10.4 inches in overall length, it is light enough for sustained use without excessive fatigue. Licensed HVAC, mechanical, and industrial technicians reach for this tool when working inside equipment cabinets, panels, and confined structural spaces.

The 15LF284-62 is intended for professional trade and industrial use wherever a compact right angle drill is needed. The rear exhaust directs spent air away from the work surface and the operator, which is especially useful in confined spaces. The 1/4 inch inlet fits standard shop air fittings and quick-disconnect couplers. An air hose is included. This tool is non-reversible, so it is best suited for straight drilling operations rather than screw removal or reversing applications. It fits naturally into maintenance, assembly line, and field service workflows where a standard drill cannot reach.

Key Features

• Right angle head provides access in confined and tight-clearance locations
• 2,400 RPM free speed at 90 psi operating pressure
• 0.40 HP pneumatic motor for consistent drilling performance
• 1/4 inch keyed chuck for secure, repeatable bit retention
• Rear exhaust location keeps airflow away from the work area and operator
• Lightweight at 1.7 pounds and compact at 10.4 inches overall length
• Air hose included for immediate setup

Compatibility

Designed for use with standard 1/4 inch air hose fittings and shop air systems operating at 90 psi. Compatible with standard 1/4 inch shank drill bits and accessories.

Installation Notes

Connection and setup should be performed by a qualified technician familiar with pneumatic tool systems. Ensure the air supply is depressurized and the hose is disconnected before changing chuck accessories. Verify the air supply is regulated to 90 psi before operation — exceeding the rated pressure can reduce tool life and create a safety hazard. Follow applicable OSHA and shop safety guidelines for pneumatic tool use, including the use of eye protection.
