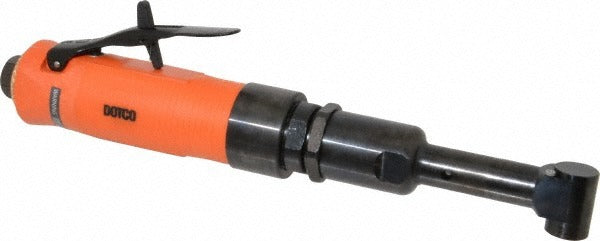

Dotco 15LF283-62 Right Angle Air Drill 0.40 Hp

Product Description

The DOTCO 15LF283-62 is a right angle air drill built for production and maintenance drilling in tight spaces where a straight inline tool cannot reach. Powered by compressed air at 90 psi, it delivers 3,300 RPM through a 1/4 inch keyed chuck, making it well suited for drilling metal, plastic, and composite materials in fabrication, assembly, and MRO environments. At 1.5 pounds and 10 inches in overall length, the tool is compact enough for one-handed use in confined areas. A rear exhaust directs air away from the work surface and operator. Installed by machinists, assembly technicians, and industrial maintenance professionals.

This right angle air drill fits production-line drilling, sheet metal work, and maintenance repair operations where access is restricted. The right angle head allows drilling parallel to a surface or into recessed cavities that a standard drill cannot access. It operates from a standard 1/4 inch air inlet, compatible with common shop air systems running at 90 psi. The included air hose simplifies setup. It is not reversible, so it is intended for forward-only drilling applications rather than fastener driving or extraction.

Key Features

• Right angle head for drilling in confined or obstructed spaces
• 3,300 RPM free speed for efficient material removal
• 1/4 inch keyed chuck provides positive bit retention
• Operates at 90 psi from a standard shop air supply with 1/4 inch inlet
• Rear exhaust directs air away from the work area
• Lightweight at 1.5 pounds for reduced operator fatigue

Compatibility

Designed as an OEM-style right angle pneumatic drill compatible with standard 1/4 inch air supply lines and 1/4 inch shank drill bits used in industrial and MRO drilling applications.

Installation Notes

Installation and operation should be performed by qualified machinists or pneumatic tool technicians familiar with compressed air systems. Before connecting or disconnecting the tool, shut off the air supply and bleed the line to release residual pressure. Verify the air supply is regulated to 90 psi and that fittings are properly seated and leak-free before operating. Always secure the workpiece and confirm the keyed chuck is fully tightened before drilling.
