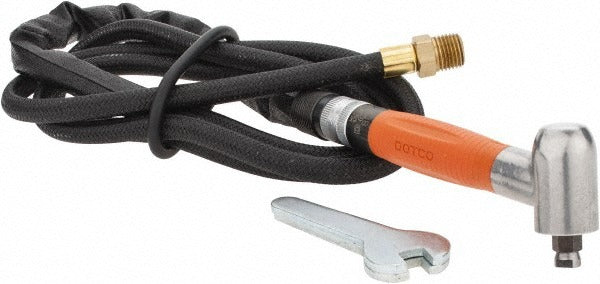

Dotco 12R0380-18 Angle Die Grinder 0.1 Hp 80000 Rpm

Product Description

The DOTCO 12R0380-18 is a pneumatic angle die grinder designed for precision grinding, deburring, and surface finishing in tight spaces. Running at 80,000 RPM with a 0.1 HP output and a 1/8 inch collet, this tool handles small carbide burrs, mounted points, and abrasive bits where straight-body tools cannot reach. Air consumption runs at 9 CFM at an operating pressure of 90 psi (620.53 kPa). The 90-degree angle head positions the spindle perpendicular to the tool body, making it the right choice for port work, weld cleanup, and internal cavity finishing. A roll throttle and rear exhaust complete the ergonomic package. Weighing 0.31 pounds, it is light enough for sustained single-hand use in production or MRO environments.

This angle die grinder is suited for metalworking, aerospace, automotive, and general fabrication applications where a compact, high-speed pneumatic grinder is required. The 5.5 inch overall length fits into confined areas that limit the use of larger tools. The included over-hose fitting simplifies air line connection. It is appropriate for use by machinists, tool-and-die technicians, and maintenance professionals working with small-diameter abrasives and carbide tooling. The 1/8 inch collet and 1/8 inch air inlet are matched to the small-bore tooling and supply lines common in precision trade environments.

Key Features

• 90-degree angle head for access to confined bores, ports, and recessed surfaces
• 80,000 no-load RPM for efficient material removal with small-diameter mounted points and burrs
• 1/8 inch collet accepts standard small-shank abrasive and carbide tooling
• Roll throttle provides smooth, controlled speed modulation during operation
• Rear exhaust routes air away from the work surface and operator
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed for use with 1/8 inch shank mounted points, carbide burrs, and abrasive bits. Requires a compressed air supply delivering 9 CFM at 90 psi through a 1/8 inch NPT air line connection.

Installation Notes

Installation and operation of pneumatic die grinders should be performed by qualified machinists or maintenance technicians familiar with compressed air tooling. Disconnect and bleed the air supply line before changing collets or mounted accessories. Verify that the air supply pressure does not exceed the rated operating pressure of 90 psi, and confirm that all fittings are secure before applying air. Always inspect the collet and mounted tooling for wear or damage before each use.
