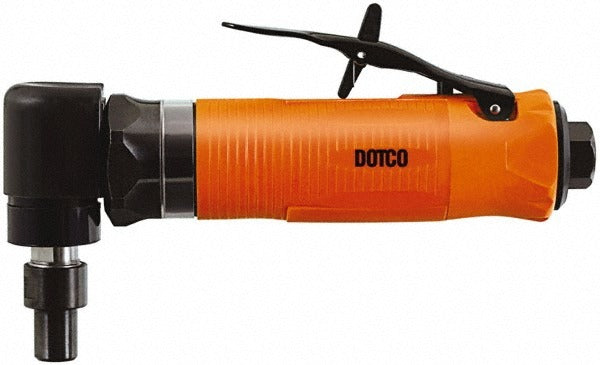

Dotco 12LF201-36 Air Die Grinder 0.4 Hp 20000 Rpm

Product Description

The DOTCO 12LF201-36 is a pneumatic angle die grinder built for precision material removal, deburring, and surface finishing in demanding shop and field environments. It runs at 20,000 RPM and delivers 0.4 horsepower at a rated air pressure of 90 psi, consuming 23 CFM at full load. The lever throttle and 90-degree angle handle give technicians positive control in tight clearances. Front exhaust routing keeps air discharge away from the work surface and the operator. Installation and operation require a clean, regulated compressed air supply. This tool is intended for use by machinists, fabricators, maintenance mechanics, and trade professionals who work with pneumatic tooling daily.

The 12LF201-36 is designed for use in maintenance, repair, and manufacturing operations where a compact angle-head grinder is needed for contouring, grinding, or porting work. The 90-degree angle configuration suits recessed surfaces and confined spaces that straight-body grinders cannot reach. A 1/4-inch collet accepts standard die grinder burrs, carbide bits, and mounted points widely available from industrial tooling suppliers. This model carries CE certification and meets DIN EN ISO 12100 and Machinery Directive 2006/42/EC, making it suitable for facilities that require documented safety compliance on pneumatic tooling.

Key Features

• 20,000 RPM free speed with a speed range of 18,000 to 24,999 RPM for controlled material removal
• 0.4 HP output at 90 psi rated air pressure
• 90-degree angle handle for access in confined or recessed work areas
• 1/4-inch collet accepts standard burrs, carbide bits, and mounted points
• Front exhaust keeps discharge away from the work surface and operator
• CE certified; complies with DIN EN ISO 12100 and Machinery Directive 2006/42/EC
• Lever throttle provides proportional speed control and positive shutoff

Compatibility

Designed as a direct-use pneumatic die grinder accepting 1/4-inch shank tooling standard across industrial die grinder applications. No specific model or system compatibility data was provided in the product input.

Installation Notes

Connect to a regulated compressed air supply set to 90 psi using a 1/4-inch inlet fitting; verify line pressure before operation. A licensed or qualified pneumatic tool technician should inspect air lines, fittings, and the collet nut torque prior to use. Always power down the air supply and bleed line pressure before changing collet tooling or performing any service. Do not exceed the rated free speed when selecting mounted accessories, as accessory speed ratings must meet or exceed the tool RPM per ANSI and manufacturer guidelines.
