Dotco 12L2580-01 Air Die Grinder 0.9 Hp 23000 Rpm

Product Description

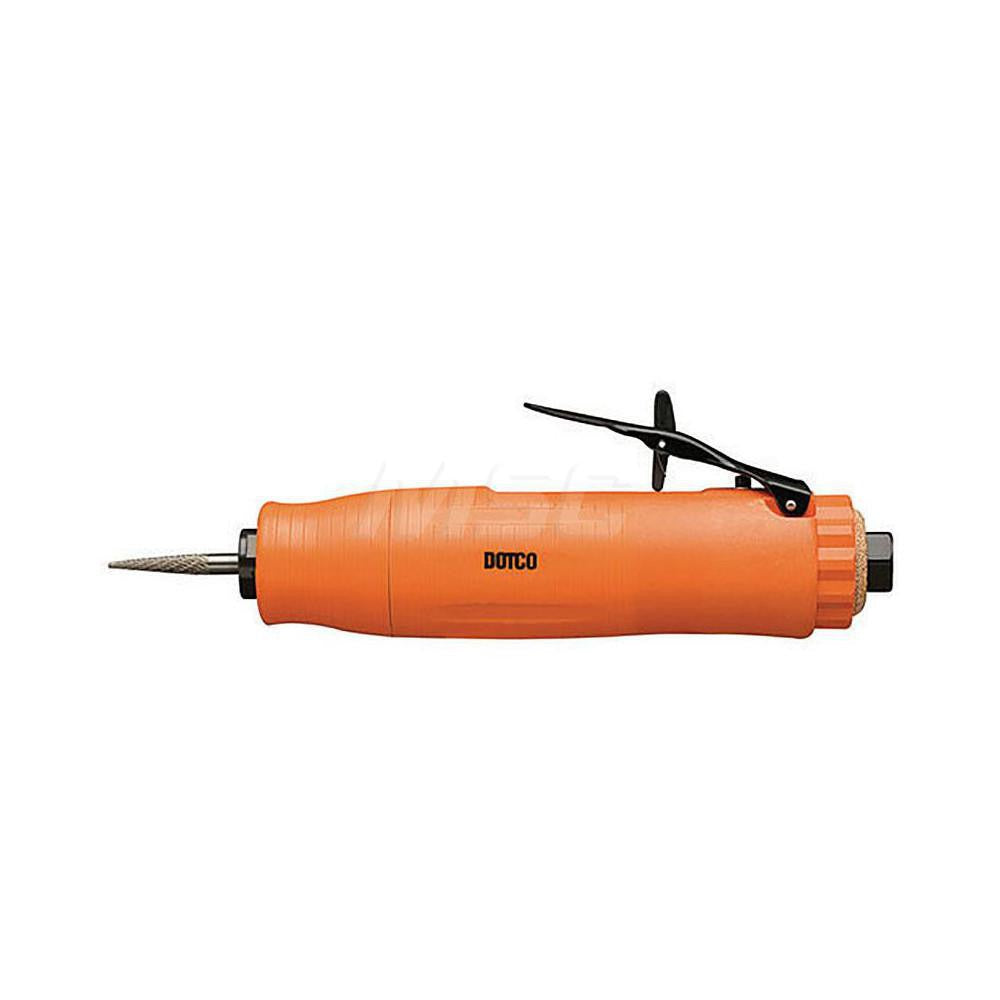

The DOTCO 12L2580-01 is a straight-handle air die grinder designed for precision grinding, deburring, and finishing work in industrial and trade environments. Powered by compressed air, it delivers 0.9 horsepower at 23,000 RPM through a 1/4 inch collet, making it well suited for controlled material removal on metal, composites, and weld seams. Air is supplied through a 1/4 inch inlet at a rated pressure of 90 psi, with a consumption rate of 38 CFM. Rear exhaust directs airflow away from the work surface and the operator. A lever-style throttle gives the user direct control over speed. Licensed HVAC technicians, pipefitters, and industrial maintenance mechanics are the primary installers and users of this tool.

The 12L2580-01 is suited for both production floor and maintenance applications where a compact, straight-body die grinder is needed. Its 7.3 inch overall length fits into tight clearances typical in metalworking, fabrication shops, and mechanical assembly operations. The lever throttle allows variable speed control without requiring full trigger engagement, which is useful for finishing passes where precision matters. This grinder is appropriate for use with standard 1/4 inch shank mounted points, carbide burrs, and abrasive bits.

Key Features

• 23,000 RPM free speed for high-throughput grinding and deburring
• 0.9 HP air motor delivers consistent torque on mounted abrasives and burrs
• 1/4 inch collet accepts standard shank tooling including carbide burrs and mounted points
• Lever throttle allows variable speed control and quick shutoff
• Rear exhaust keeps airflow directed away from the workpiece
• Compact straight-handle body at 7.3 inches overall length fits restricted-access areas
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed for use with standard 1/4 inch shank rotary tooling including carbide burrs, mounted grinding points, and abrasive bits. Requires a compressed air supply capable of sustaining 90 psi at 38 CFM through a 1/4 inch NPT inlet connection.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety practices. Before connecting to an air supply, verify the line pressure does not exceed the rated 90 psi operating pressure and that the air supply is equipped with a filter-regulator-lubricator unit appropriate for die grinder service. Inspect the collet and tooling shank for wear or damage before each use, and ensure all tooling is fully seated and tightened before applying air. Follow applicable OSHA and ANSI B186.1 safety standards for portable air tools.
