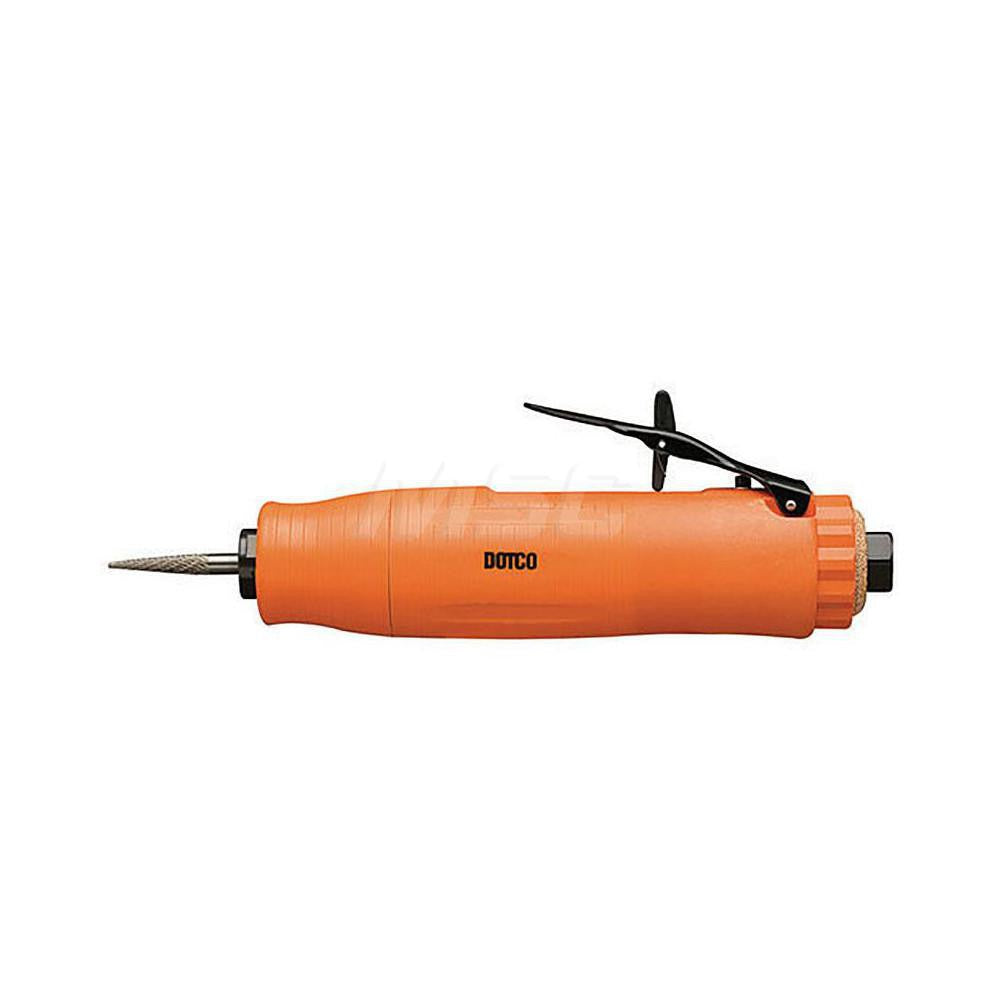

Dotco 12L2500-01 Air Die Grinder 0.9 Hp 23000 Rpm

Product Description

The DOTCO 12L2500-01 is a straight-handle air die grinder designed for precision grinding, deburring, and finishing work in industrial and trade environments. It runs at 23,000 RPM and delivers 0.9 horsepower, drawing 38 CFM at 90 psi. The front exhaust design directs air away from the workpiece and operator, keeping the work area clear during use. Actuation is handled by a lever throttle, giving the operator consistent speed control throughout the cut. This tool is sized for a 1/4 inch collet, accepting the standard tooling used across most die grinding applications. At 1.8 pounds, it is light enough for extended overhead or inline work without significant fatigue.

The 12L2500-01 is suited for metalworking shops, fabrication facilities, maintenance and repair operations, and production lines where air-powered rotary tooling is standard. Its 6.9 inch overall length and straight handle profile make it appropriate for inline access in confined areas. Machinists, tool and die technicians, and general maintenance tradespeople are the typical installers and operators. It is intended for use on pneumatic supply systems regulated to 90 psi.

Key Features

• 23,000 RPM free speed with a speed range of 18,000 to 24,999 RPM for varied material removal rates
• 0.9 HP output suitable for continuous die grinding and deburring tasks
• Front exhaust keeps airflow directed away from the operator and work surface
• Lever throttle provides precise speed modulation during operation
• 1/4 inch collet accepts standard die grinding bits and mounted points
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed for use with 1/4 inch shank die grinding accessories on pneumatic systems supplying 90 psi at a minimum of 38 CFM. No specific model or system compatibility was stated in the product data.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tooling and applicable workplace safety standards. Verify the air supply is regulated to 90 psi and that the line can deliver adequate CFM before connecting the tool. Disconnect the air supply before changing collets or mounted accessories. Use appropriate thread sealant and fittings rated for the operating pressure on all air line connections.
