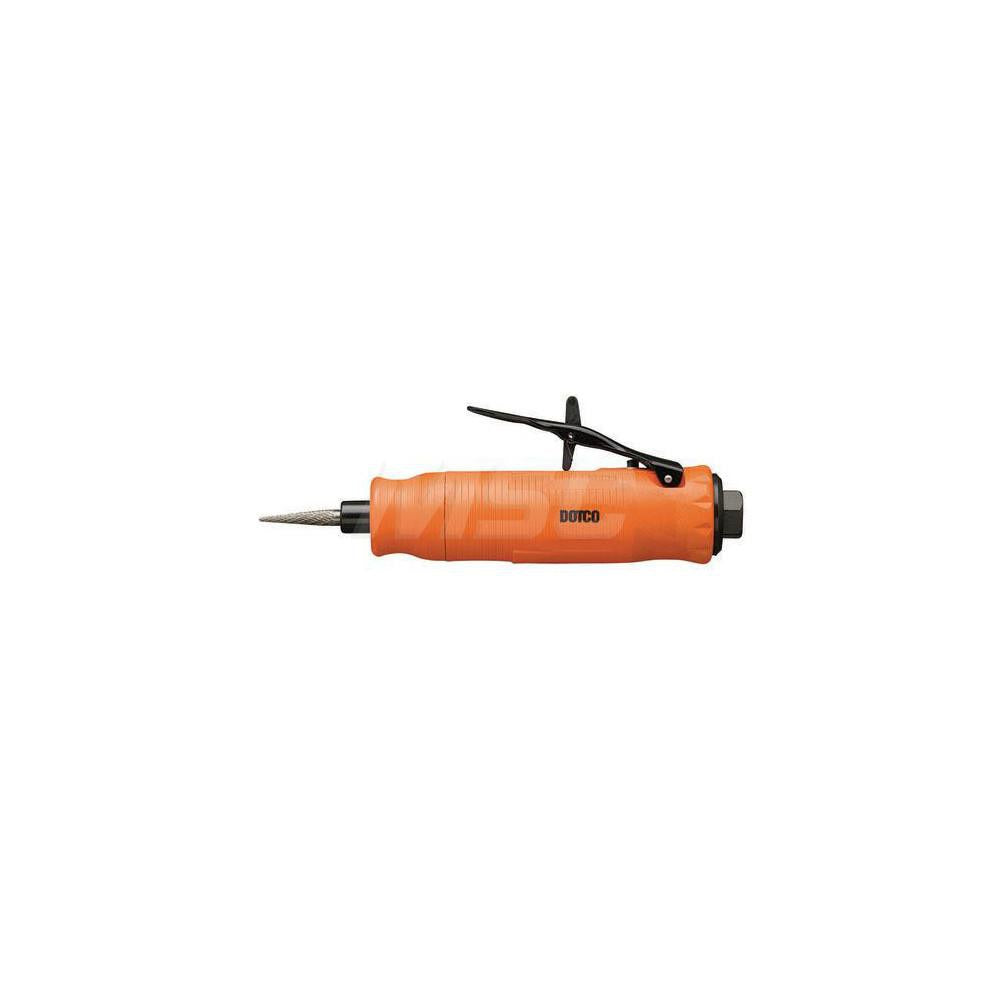

Dotco 12L1001-36 Air Die Grinder 0.3 Hp 34000 Rpm

Product Description

The DOTCO 12L1001-36 is a straight air die grinder designed for precision grinding, deburring, and finishing work in industrial and trade environments. Powered by compressed air, it runs at 34,000 RPM with a 0.3 HP motor and draws 16 CFM at 90 PSI (620.53 kPa). The 1/4 inch collet accepts standard mounted points and carbide burrs. Front exhaust directs air away from the work surface, making it a practical choice for confined spaces. This tool is installed and serviced by machinists, fabricators, and maintenance technicians who require a compact, high-speed rotary tool for metal and composite work.

The 12L1001-36 suits light-duty material removal and surface preparation tasks in manufacturing, fabrication shops, automotive, and MRO applications. The lever throttle provides controlled speed engagement, and the straight handle offers direct access to tight workpiece geometry. At 6 inches in overall length, the tool fits standard die grinder holders and inline pneumatic setups. It is appropriate for use wherever a 1/4 inch air inlet supply line is available at the recommended operating pressure.

Key Features

• 34,000 RPM no-load speed for high-speed grinding and deburring
• 0.3 HP air motor with 16 CFM air consumption
• 1/4 inch collet compatible with standard mounted points and burrs
• Front exhaust design directs discharge air away from the work area
• Lever throttle for controlled, repeatable speed engagement
• Compact straight handle at 6 inches overall length
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed for use with standard 1/4 inch shank mounted grinding points, carbide burrs, and abrasive accessories. Requires a 1/4 inch NPT air inlet supply at the rated operating pressure.

Installation Notes

Installation and operation should be performed by a qualified technician familiar with pneumatic hand tools and shop air systems. Before changing accessories or performing maintenance, depressurize and disconnect the air supply line. Verify that the air supply pressure and CFM capacity at the tool inlet meet the rated requirements before operation. Always inspect the collet and mounted point for wear or damage prior to use, and confirm accessory RPM ratings meet or exceed the tool speed.
