Dotco 12L1000-36 Air Die Grinder 0.3 Hp 30000 Rpm

Product Description

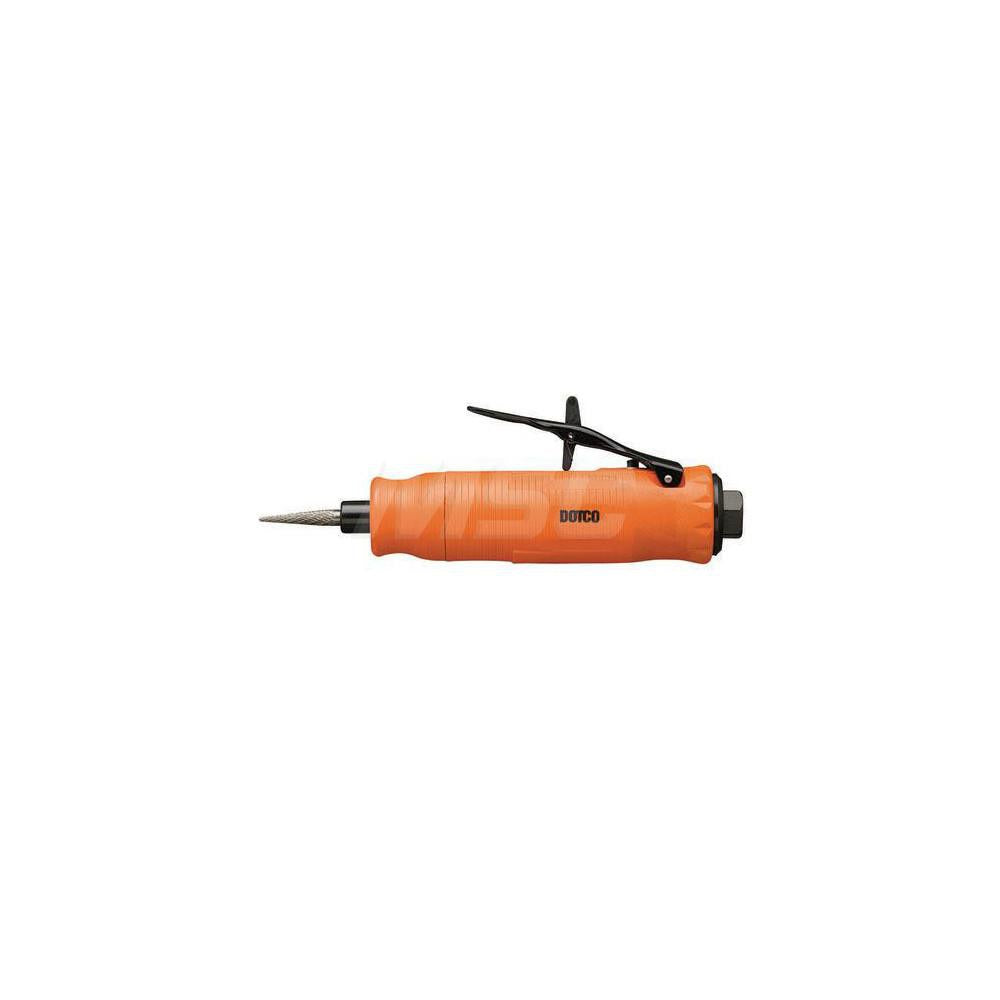

The DOTCO 12L1000-36 is a straight-handle air die grinder built for precision material removal, deburring, porting, and surface grinding in professional shop environments. It runs at 30,000 RPM on 0.3 horsepower and draws 16 CFM at 90 psi operating pressure. The lever throttle gives technicians responsive speed control during close-tolerance work. At 0.8 pounds, it is light enough for extended use without fatigue. The front exhaust directs airflow away from the work surface, keeping debris and coolant mist clear of the operator and the part. Metalworking trades, aerospace maintenance technicians, and industrial mechanics are the primary users of this tool.

The 12L1000-36 fits standard die grinder applications requiring a 1/4 inch collet: carbide burr work, mounted point grinding, small flap wheels, and mandrel-mounted abrasives. The 6-inch overall length keeps it maneuverable inside recessed cavities and tight weld joints. It operates on a standard 1/4 inch NPT compressed air inlet, making it compatible with most shop air systems running at 90 psi. This grinder suits automotive fabrication, HVAC sheet metal work, pipe fitting, and general industrial maintenance where a compact, high-speed rotary tool is needed.

Key Features

• 30,000 RPM free speed for fast material removal with mounted abrasives and carbide burrs
• 0.3 HP motor delivers consistent power for extended die grinding tasks
• Lever throttle provides precise, responsive speed control
• Front exhaust routes air away from the work surface and operator
• 1/4 inch collet accepts standard die grinder accessories and mandrels
• Compact 6-inch straight-handle body for access in confined workspaces

Compatibility

Designed as a direct-use air die grinder for shop air systems supplying 90 psi through a 1/4 inch NPT inlet. Accepts standard 1/4 inch collet tooling including carbide burrs, mounted grinding points, and mandrel-mounted abrasives.

Installation Notes

Installation and operation should be performed by qualified technicians familiar with pneumatic tools and applicable shop safety standards. Before attaching or changing collet tooling, disconnect the air supply and verify the tool has fully depressurized. Use an inline air filter and lubricator on the supply line to protect internal components and extend service life. Do not exceed the rated 90 psi operating pressure, and inspect the collet and tooling for wear or damage before each use.
