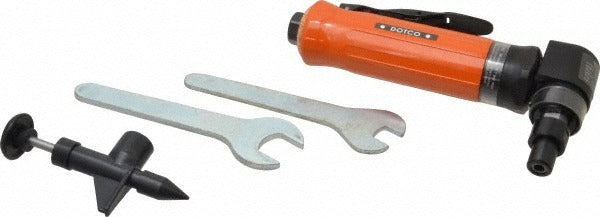

Dotco 10LF280-36 Air Die Grinder 0.4 Hp 12000 Rpm

Product Description

The DOTCO 10LF280-36 is a pneumatic angle die grinder designed for precision material removal, deburring, porting, and surface finishing in demanding shop and field environments. Powered by compressed air at 90 psi, it delivers 0.4 horsepower and a free speed of 12,000 RPM, with a speed range spanning 10,000 to 17,999 RPM for flexible grinding applications. The 1/4 inch collet accepts standard mounted points, carbide burrs, and abrasive bits. Air consumption runs at 23 CFM, so pairing it with a properly sized compressor is essential for sustained performance. At 1.1 pounds, the tool is light enough for extended use without fatigue.

This die grinder is suited for metalworking, fabrication, automotive, and maintenance applications where a compact angle-head tool is required. The 90-degree angle handle configuration allows access to confined workspaces and recessed areas that straight or pencil grinders cannot reach. The lever throttle provides precise speed control during detailed finishing work. Rear exhaust routing directs spent air away from the work surface and the operator, reducing debris contamination. Overall tool length is 6.6 inches, keeping the footprint tight in tight assemblies.

Key Features

• 0.4 HP pneumatic motor delivering 12,000 RPM free speed
• Speed range of 10,000 to 17,999 RPM for varied grinding tasks
• 90-degree angle handle for access in confined or recessed areas
• 1/4 inch collet compatible with standard carbide burrs and mounted points
• Lever throttle for precise speed and feed control
• Rear exhaust keeps debris and spent air clear of the work zone
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed as an OEM-style pneumatic die grinder accepting standard 1/4 inch shank mounted points, carbide burrs, and abrasive bits used in metalworking and fabrication applications.

Installation Notes

Installation and operation should be performed by a qualified technician familiar with pneumatic tooling. Ensure the air supply is regulated to 90 psi and that the compressor output meets the 23 CFM consumption requirement before connecting. Always depressurize the air line before changing collet accessories, and verify the collet nut is fully tightened before operation. Follow applicable workplace safety standards and wear appropriate PPE including eye protection and hearing protection during use.
