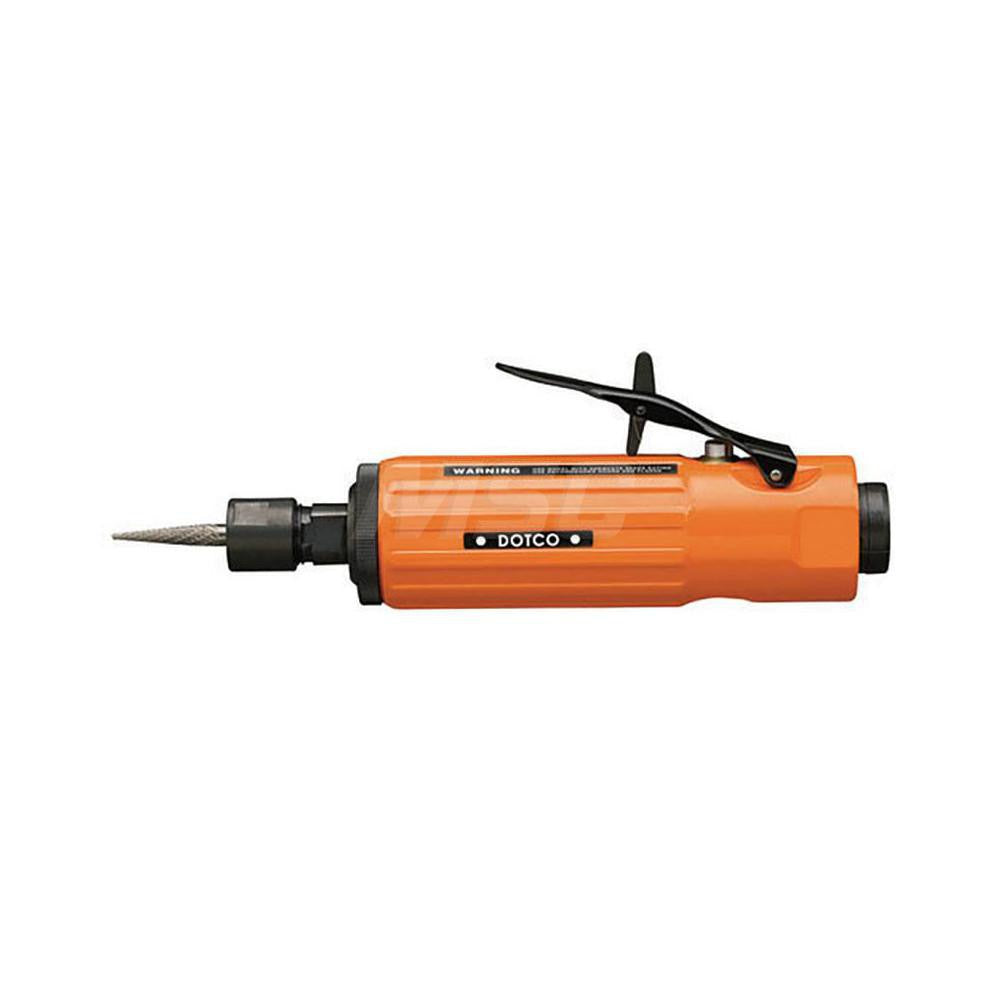

Dotco 10L2580-01 Air Die Grinder 0.9 Hp 23000 Rpm

Product Description

The DOTCO 10L2580-01 is a straight-handle pneumatic die grinder designed for precision grinding, deburring, porting, and surface preparation in industrial and trade environments. It runs at 23,000 RPM and delivers 0.9 horsepower powered by a 90 psi compressed air supply. Air consumption is 37 CFM at rated pressure. The 1/4 inch collet accepts standard die grinder bits, carbide burrs, and mounted points. A lever throttle provides consistent speed control during operation. Rear exhaust routing directs airflow away from the work surface, keeping the workpiece and operator clear of debris. This tool is suited for machinists, fabricators, pipefitters, and maintenance technicians working in production or field environments.

The 10L2580-01 is built for applications requiring controlled, high-speed rotary cutting or finishing in tight spaces. The straight inline handle and 6.3 inch overall length make it practical for die work, weld prep, and internal cavity finishing. It is appropriate for both shop and field use where a compressed air supply meeting the rated inlet requirements is available. The 1/4 inch inlet fitting is standard across most shop air systems, simplifying integration into existing pneumatic setups.

Key Features

• 23,000 RPM free speed for efficient material removal and surface finishing
• 0.9 HP output suitable for sustained grinding and deburring tasks
• 1/4 inch collet accepts standard carbide burrs, mounted points, and grinding bits
• Lever throttle provides precise speed and feed control
• Rear exhaust keeps airflow directed away from the work area
• Compact straight-handle design at 6.3 inches overall length for access in confined areas
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed for use with standard 1/4 inch shank die grinder accessories including carbide burrs, mounted grinding stones, and abrasive points. Requires a compressed air supply capable of delivering 90 psi and a minimum of 37 CFM at the inlet.

Installation Notes

Installation and operation should be performed by a qualified technician familiar with pneumatic tooling. Verify the compressed air supply is regulated to 90 psi and that the air line is properly filtered and lubricated before connecting the tool. Always depressurize the air line and disconnect the air supply before changing collet accessories. Follow applicable OSHA standards for grinding and abrasive wheel operations, including the use of appropriate eye and face protection.
