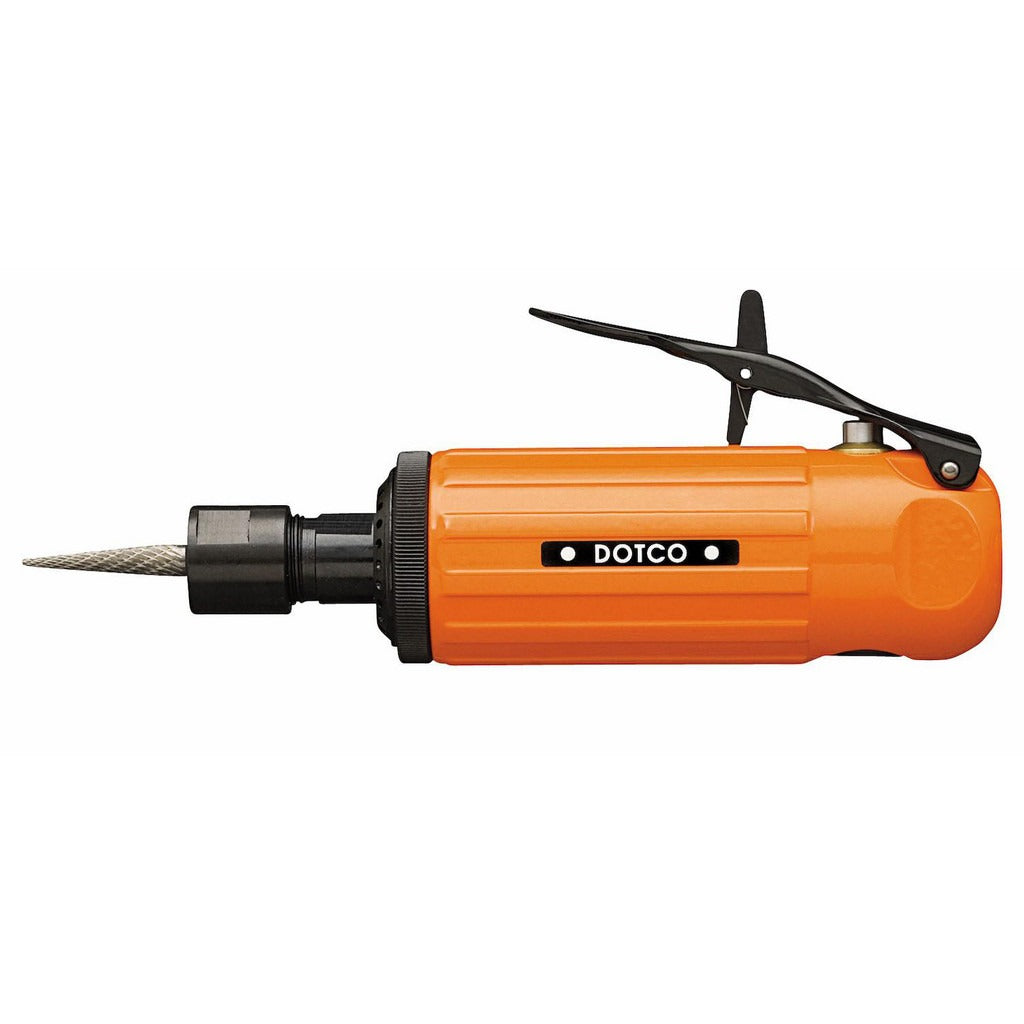

Dotco 10L2000-01 Air Die Grinder 0.6 Hp 25000 Rpm

Product Description

The DOTCO 10L2000-01 is a straight air die grinder built for precision grinding, deburring, and surface finishing in professional trade and industrial environments. Powered by compressed air, it delivers 0.6 horsepower and spins at 25,000 RPM with a 1/4 inch collet for secure bit retention. Air consumption runs at 30 CFM at 620.53 kPa (approximately 90 psi), making adequate compressor capacity a key installation consideration. The lever throttle gives the operator direct speed control, and the front exhaust design directs airflow away from the work surface. At 1.3 pounds and 5.8 inches in overall length, it is compact enough for confined-space work.

This straight die grinder is suited for use in automotive repair, metal fabrication, HVAC sheet metal work, plumbing rough-in, and general mechanical maintenance. The straight handle configuration is the standard form factor for reaching ports, bores, and weld seams where angle grinders cannot access. It is typically installed and operated by machinists, pipefitters, automotive technicians, and sheet metal workers who need a lightweight, high-speed rotary tool driven by a shop air supply.

Key Features

• 25,000 no-load RPM for high-speed grinding and deburring
• 0.6 HP air motor with lever-style throttle for precise speed control
• 1/4 inch collet accepts standard die grinder bits and carbide burrs
• Front exhaust directs spent air away from the work surface and operator
• Compact straight handle at 5.8 inches overall length for tight-access work
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed to accept standard 1/4 inch shank die grinder accessories including carbide burrs, mounted grinding points, and cut-off wheels rated for 25,000 RPM or higher. Requires a shop air supply capable of delivering 30 CFM at the rated working pressure.

Installation Notes

Connection to the air supply uses a 1/4 inch inlet; verify the supply line and fittings match before attaching. Always confirm the accessory shank and speed rating are compatible with the 1/4 inch collet and 25,000 RPM no-load speed before operation. Shut off and bleed the air supply line before changing collet accessories. This tool is intended for use by trained personnel following applicable workplace safety standards for pneumatic tools.
