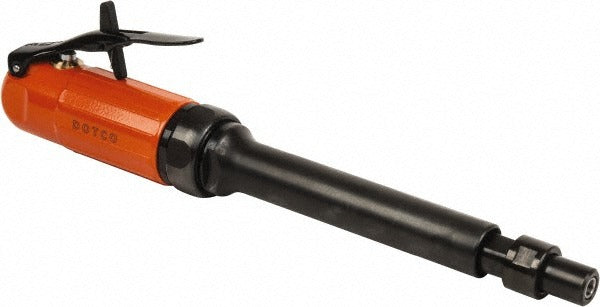

Dotco 10L1101-36 Air Die Grinder 0.3 Hp 28000 Rpm

Product Description

The DOTCO 10L1101-36 is a straight-handle, extended-length air die grinder built for precision grinding, deburring, and surface work in industrial and trade environments. Powered by compressed air, it runs at 28,000 RPM with a 0.3 HP output and draws 16 CFM at 90 psi (620.53 kPa). The 1/4 inch collet accepts standard die grinder bits and burrs, and the front exhaust directs airflow away from the workpiece and operator. The lever throttle gives fine speed control during close-tolerance work. At 1.13 pounds, this tool is light enough for extended use without excessive fatigue.

The 10L1101-36 suits metalworking, fabrication, automotive, and maintenance applications where a compact, high-speed rotary tool is needed in tight spaces. Its extended-length straight handle — measuring 9.63 inches overall — reaches into recessed areas that shorter die grinders cannot access. It is typically used by machinists, pipefitters, maintenance technicians, and fabricators working on metal grinding, port work, weld cleanup, and burr removal.

Key Features

• 28,000 no-load RPM for high-speed material removal and finishing
• Extended-length straight handle at 9.63 inches for reach into confined areas
• Lever throttle provides precise speed modulation during operation
• Front exhaust design redirects spent air away from the work surface
• 1/4 inch collet accepts a wide range of standard burrs and mounted points
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed to accept standard 1/4 inch shank die grinder accessories including carbide burrs, mounted grinding points, and abrasive wheels rated for operation at or above 28,000 RPM.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety. Before connecting to an air supply, verify the line pressure does not exceed the tool rating and that the air supply is filtered, lubricated, and free of excess moisture. Use only accessories rated for the no-load RPM of this tool, as under-rated burrs or wheels present a serious hazard. Disconnect the air supply before changing collet accessories.
