Dotco 10L1080-36 Air Die Grinder 0.3 Hp 30000 Rpm

Product Description

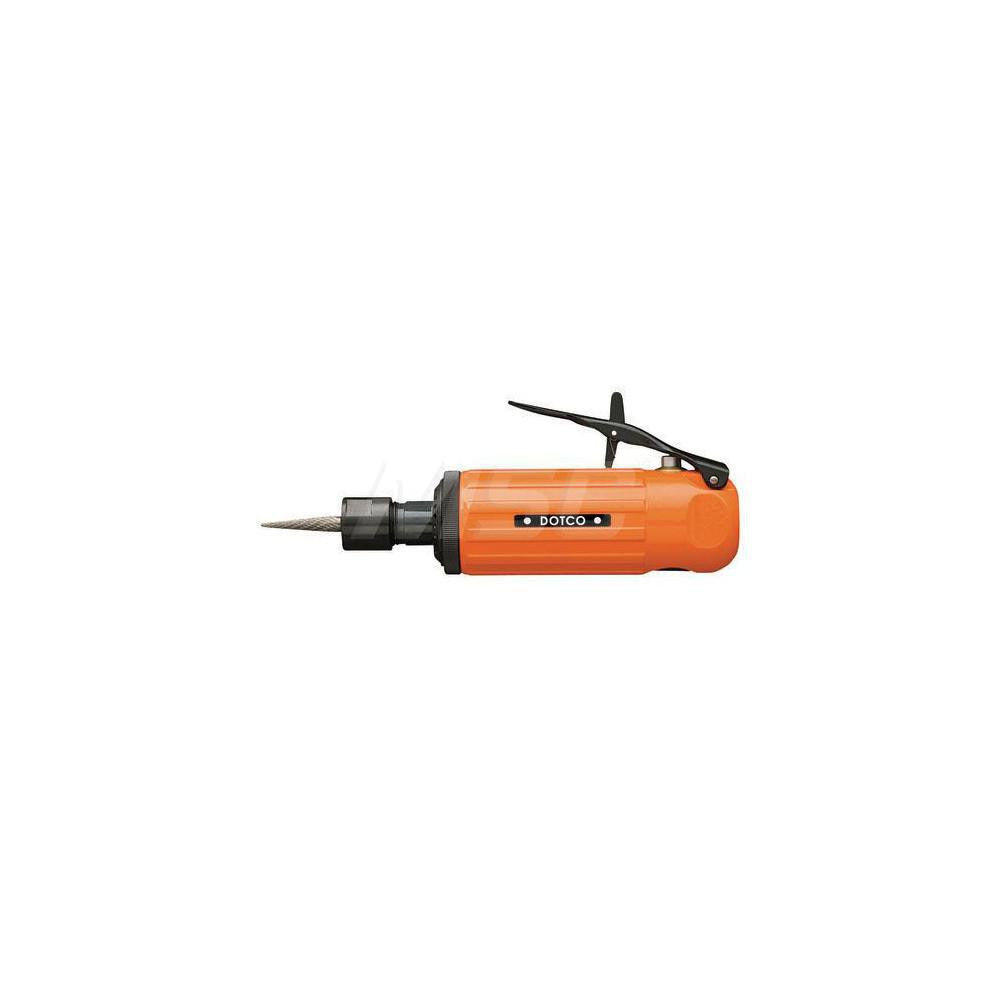

The DOTCO 10L1080-36 is a straight-handle air die grinder designed for precision grinding, deburring, and surface finishing in industrial and trade environments. It runs at 30,000 RPM and delivers 0.3 horsepower, drawing 16 CFM of air at 90 psi. The lever throttle gives the operator precise speed control during use. Rear exhaust directs airflow away from the workpiece, keeping the work area cleaner and reducing debris blowback. The 1/4-inch collet accepts a wide range of mounted points, carbide burrs, and grinding stones. This tool is intended for use by machinists, pipefitters, fabricators, and maintenance technicians working in production or field service settings.

The 10L1080-36 is suited for close-tolerance material removal in tight spaces where a larger grinder cannot reach. Its compact straight-body design, measuring 4.6 inches in overall length, makes it practical for port work, weld cleanup, and die and mold finishing. The lever throttle style is common in production environments where repeated on-off cycling is required. At 0.7 pounds, it is light enough for extended use without significant operator fatigue. This grinder fits into standard pneumatic tool setups using a 1/8-inch inlet connection.

Key Features

• 30,000 RPM free speed for efficient material removal on hard metals and composites
• 0.3 HP output with 16 CFM air consumption at 90 psi operating pressure
• 1/4-inch collet compatible with standard mounted points and carbide burrs
• Rear exhaust location keeps airflow directed away from the workpiece
• Lever throttle provides precise flow control during operation
• Compact 4.6-inch straight-handle body for access in confined work areas
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed for use with standard 1/4-inch shank mounted points, carbide burrs, and grinding accessories. Requires a pneumatic supply capable of delivering 16 CFM at 90 psi through a 1/8-inch inlet fitting.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety practices. Before connecting to an air supply, verify the line pressure does not exceed the rated operating pressure of 90 psi and that the air supply is clean and dry to prevent internal tool damage. Ensure the collet and accessory shank are fully seated and the collet nut is properly tightened before use. Follow applicable workplace safety standards and wear appropriate eye and hearing protection during operation.
