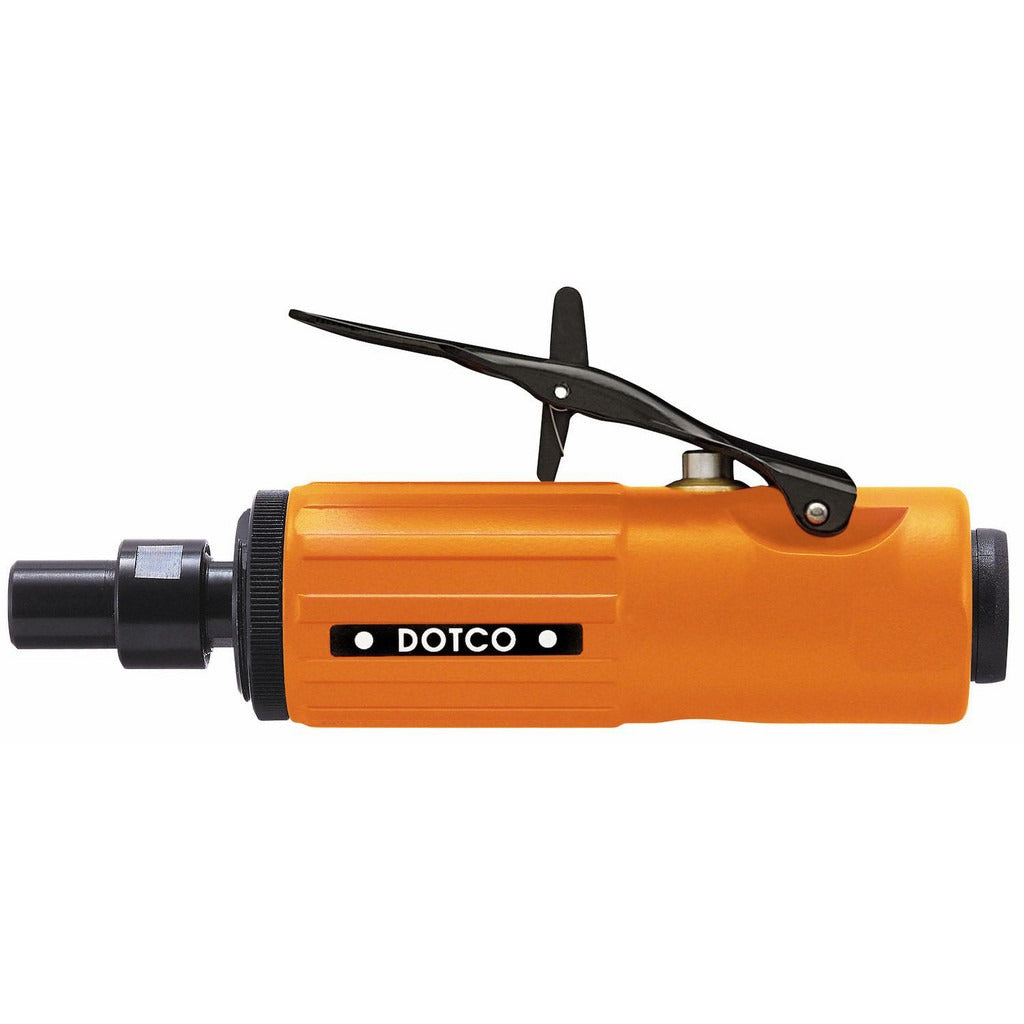

Dotco 10L1000-36 Air Die Grinder 0.3 Hp 30000 Rpm

Product Description

The DOTCO 10L1000-36 is a straight air die grinder designed for precision material removal, grinding, and deburring in industrial and trade environments. Powered by compressed air, it delivers 0.3 horsepower at a no-load speed of 30,000 RPM, making it suitable for detailed grinding work on metal, composite, and similar materials. The tool accepts a 1/4-inch collet and connects to a compressed air supply via a 1/4-inch inlet. Front exhaust directs airflow away from the workpiece and operator. A lever-style throttle provides straightforward speed control during operation. Licensed trades including machinists, pipefitters, and fabricators rely on this style of grinder for close-tolerance finishing work.

The 10L1000-36 is intended for use in fabrication shops, maintenance facilities, and manufacturing environments where a compact straight die grinder is required. Its straight handle configuration makes it well-suited for inline access to tight clearances or recessed surfaces. Air consumption runs at 16 CFM at an operating pressure of approximately 90 psi (620.53 kPa), so it requires a compressor capable of sustaining that output for continuous use. At 0.7 pounds, the tool is lightweight enough for extended hand use without significant operator fatigue.

Key Features

• 30,000 RPM no-load speed for high-speed grinding and deburring
• 0.3 HP air motor with lever throttle for controlled material removal
• 1/4-inch collet accepts standard die grinder bits and mounted points
• Front exhaust keeps airflow directed away from work surface
• Straight handle design for inline access in confined areas
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed as an OEM-style straight die grinder accepting standard 1/4-inch shank mounted points, grinding stones, and carbide burrs compatible with 1/4-inch collet tooling.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tooling. Before connecting or disconnecting the tool, depressurize the air line and verify the supply pressure does not exceed the rated operating pressure of 90 psi. Ensure the air supply is clean and dry, as moisture and contamination in the line can shorten tool life. Always inspect the collet and mounted accessory for secure seating before operation, and wear appropriate PPE including eye and hearing protection per applicable workplace safety standards.
